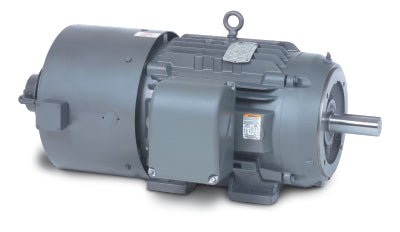

IDM4104T Baldor Motor 30HP 1780RPM 284T TEBC 230/460 Volt 3 Phase 10T004Y538G1

Baldor's Inverter & Vector motors, equipped with a superior insulation system designed to comply with NEMA MG-1 part 31 for inverter power, are designed for a variety of industrial applications where full torque is needed from base speed down to zero speed. Applications include conveyors, pumps, fans, metal processing, compressors, test stands, material handling, packaging equipment, printing presses, and others requiring exact speeds and positioning.

Baldor Motor Parts, Diagrams and Specs Available!

Specification # 10F206Y538G1

Catalog Number    IDM4104T
Enclosure    TEBC
Frame    286T
Frame Material    Cast Iron
Frequency    60.00 Hz
Haz Area Class and Group    None
Haz Area Division    Not Applicable
Motor Letter Type    Three Phase
Output @ Frequency    30.000 HP @ 60 HZ
Phase    3
Synchronous Speed @ Frequency    1800 RPM @ 60 HZ
Voltage @ Frequency    460.0 V @ 60 HZ
230.0 V @ 60 HZ
Agency Approvals    CSA
UR
Ambient Temperature    40 °C
Auxillary Box    No Auxillary Box
Auxillary Box Lead Termination    None
Base Indicator    Rigid
Bearing Grease Type    Polyrex EM (-20F +300F)
Blower    BLOWER
Current @ Voltage    76.000 A @ 230.0 V
78.000 A @ 208.0 V
38.000 A @ 460.0 V
Design Code    A
Drip Cover    No Drip Cover
Duty Rating    CONT
Efficiency @ 100% Load    93.6 %
Electrically Isolated Bearing    Not Electrically Isolated
Feedback Device    NO FEEDBACK
Front Face Code    Encoder/Feedback Device
Front Shaft Indicator    None
Heater Indicator    No Heater
High Voltage Full Load Amps    38.0 a
Insulation Class    H
Inverter Code    Inverter Duty
KVA Code    J
Lifting Lugs    Standard Lifting Lugs
Locked Bearing Indicator    Locked Bearing
Max Speed    2700 rpm
Motor Lead Exit    Ko Box
Motor Lead Quantity/Wire Size    9 @ 8 AWG
Motor Lead Termination    Flying Leads
Motor Standards    NEMA
Motor Type    1056M
Mounting Arrangement    F1
Number of Poles    4
Overall Length    34.47 IN
Power Factor    80
Product Family    General Purpose
Pulley End Bearing Type    Ball
Pulley Face Code    Standard
Pulley Shaft Indicator    Standard
Rodent Screen    None
RoHS Status    ROHS NON-COMPLIANT
Service Factor    1.00
Shaft Diameter    1.875 IN
Shaft Extension Location    Pulley End
Shaft Ground Indicator    No Shaft Grounding
Shaft Rotation    Reversible
Shaft Slinger Indicator    Shaft Slinger
Speed    1760 rpm
Speed Code    Single Speed
Starting Method    Direct on line
Thermal Device - Bearing    None
Thermal Device - Winding    Normally Closed Thermostat
Vibration Sensor Indicator    No Vibration Sensor
Winding Thermal 1    None
Winding Thermal 2    None
