Reliable Motors for Demanding Industrial Applications
Square One Electric Motors & Pumps offers a wide selection of severe duty motors and hazardous location motors designed for the most challenging and high-risk environments. These motors are engineered to withstand extreme heat, moisture, chemical exposure, abrasive dust, and potentially explosive atmospheres — without compromising performance or safety.
Whether you're operating in an oil refinery, chemical plant, food processing facility, wastewater treatment plant, or paper mill, we have the industrial-grade motors you need to maintain uptime, safety, and compliance.
What Are Severe Duty and Hazardous Location Motors?
These are specialty electric motors built to meet rigorous application demands beyond standard operating environments.
-
Severe Duty Motors: Built to operate in dirty, moist, or corrosive environments such as paper mills, chemical processing, or outdoor industrial settings.
-
Explosion Proof Motors: UL and CSA listed for use in Class I & II Division 1 hazardous environments (flammable gases, vapors, dust).
-
IEEE 841 Chemical Duty Motors: Designed for petrochemical and chemical plants with additional protection against harsh chemicals, extended lifespan, and enhanced corrosion resistance.
Types of Severe Duty & Hazardous Location Motors
🔹 Severe Duty Motors
These motors are built to take abuse — from grime and grit to humidity and corrosive vapors.
Applications:
-
Aggregate processing
-
Pulp and paper mills
-
Wastewater facilities
-
Outdoor HVAC compressors
-
Food processing plants
Features:
-
Cast iron or stainless steel frames
-
TEFC or TEAO enclosures
-
High resistance to vibration, heat, and contamination
-
Suitable for inverter-duty use (VFD compatible)
👉 Explore Severe Duty Motors

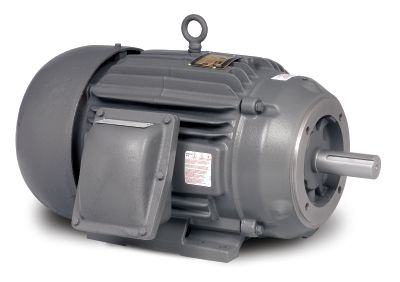

🔹 Explosion Proof Motors
Explosion proof motors are required in workspaces where flammable gases, vapors, or dust are present during normal operation.
Hazard Class Ratings Include:
-
Class I, Division 1 (Gases/Vapors)
-
Class II, Division 1 (Dust)
-
Groups A, B, C, D, E, F, G
Typical Industries:
-
Oil & gas
-
Grain elevators
-
Paint booths
-
Mining operations
-
Refineries
Features:
-
UL and CSA explosion-proof certification
-
T-Frame and C-Face mounting
-
Flame-tight, corrosion-resistant construction
-
Internal protection to contain ignition
👉 Shop Explosion Proof Motors
🔹 IEEE 841 Chemical Duty Motors
IEEE 841 motors are premium-grade severe duty motors designed specifically for the chemical, oil & gas, and petroleum industries.
Why Choose IEEE 841 Motors?
-
Meet ANSI/IEEE Std 841-2009
-
Extended bearing life (L-10 life of 100,000 hours)
-
Corrosion-resistant coating inside and out
-
Precision-balanced rotors
-
High-efficiency (NEMA Premium or above)
Industries Served:
-
Refineries
-
Chemical manufacturing
-
Natural gas distribution
-
Wastewater treatment
👉 Shop IEEE Chemical Duty Motors
Severe Duty vs Explosion Proof vs IEEE Chemical Duty Motors Comparison
| Feature / Specification |
Severe Duty Motors |
Explosion Proof Motors |
IEEE 841 Chemical Duty Motors |
| Primary Application |
Harsh environments with dirt, moisture, or vibration |
Hazardous areas with flammable gases/dust present |
Chemical and petrochemical plants |
| Hazard Rating |
Not explosion proof |
Class I & II, Div 1 / Groups A-G |
Not rated for explosion but highly corrosion resistant |
| Typical Industries |
Pulp & paper, wastewater, food processing |
Oil & gas, mining, grain handling, paint booths |
Refineries, chemical processing, gas distribution |
| Frame Construction |
Cast iron or stainless steel |
Heavy-duty cast iron, flame-tight enclosures |
Corrosion-resistant cast iron with epoxy coating |
| Enclosure Type |
TEFC / TEAO |
TEXP (Totally Enclosed Explosion Proof) |
TEFC (sealed) |
| Bearing Life Expectancy |
~50,000 hours |
~50,000 hours |
Minimum 100,000 hours (L-10) |
| Compliance & Standards |
NEMA MG1 |
UL and CSA listed for hazardous areas |
ANSI/IEEE Std 841-2009 |
| Corrosion Resistance |
Moderate to high (varies by brand/model) |
High |
Very high (epoxy-coated interior and exterior) |
| Mounting Options |
Rigid base, C-Face, Foot mount |
T-Frame, C-Face, Foot mount |
Rigid base, C-Face |
| VFD Compatibility |
Yes (inverter duty models available) |
Yes (verify ratings with enclosure class) |
Yes – designed for VFD operation |
| Typical Power Range |
1 HP to 300+ HP |
1 HP to 300+ HP |
1 HP to 250 HP |
| Cost Level |
$$ |
$$$ |
$$$$ |
📌 How to Use This Chart:
-
Choose Severe Duty for rugged, wet, or dirty industrial environments without explosive hazards.
-
Choose Explosion Proof for flammable atmospheres where ignition could occur during normal motor operation.
-
Choose IEEE 841 Chemical Duty when your system faces corrosive chemicals, constant exposure, or requires long lifespan with premium specs.
Why Choose Square One Electric?
At Square One, we understand that critical industrial operations can’t afford downtime — especially in hazardous or harsh environments. That’s why we offer:
✅ Top Brands – Baldor, Leeson, Marathon, and others trusted by professionals
✅ UL/CSA/IEEE-Certified Motors – For regulatory and insurance compliance
✅ Expert Support – Let our team help match motors to your safety class and specs
✅ Fast Shipping Nationwide – Direct from regional warehouses to reduce delays
✅ Quotes & Bulk Orders Welcome – Need 3+ motors? Contact Us for custom quotes
