Home » WD34S2A US Motors 3/4HP 1800RPM 56 TEFC 208-230/460V 3 Phase P063GBD4443015B

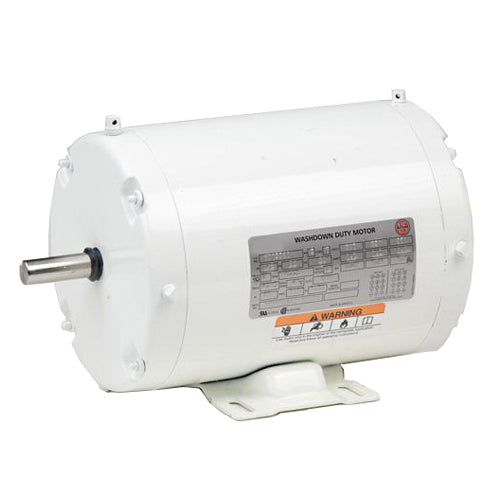

WD34S2A US Motors 3/4HP

* Image is for reference only

WD34S2A US Motors 3/4HP 1800RPM 56 TEFC 208-230/460V 3 Phase P063GBD4443015B

SKU: WD34S2A
$375.00
Sale $375.00
Description

Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.

Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.

  • Suitable for food processors, canners, meat packers, bakeries, dairies, drug and cosmetic manufacturers for sanitary, easily cleaned motors.

This three phase motor is equipped with:

  • Class F Insulation, Class B Rise At Full Load On 60 Hertz Sine Wave Power
  • BISSC®† Certified, Smooth Design For Easy Cleaning
  • USDA®† Approved Non-Toxic White Epoxy Paint
  • Moisture Resistant Gasketed Conduit Box With NPT Lead Holes
  • V-Ring Rotating Shaft Seals
  • 40°C Ambient, NEMA®† Design B Performance On 60 Hertz Sine Wave Power
SPECS
Model_Number P063GBD4443015B PRODUCT NAME .75 HP - TENV - 1725 PHASETYPE 3_POLYPHASE MOTOR ENCLOSURE TENV HORSEPOWER .75 KILOWATTS 0.6 POLES 4 NUMBER SPEEDS 1 RPM 1725 HERTZ 60 VOLTS PRIMARY 230/460 V VOLTS 230 VOLTS 2 460 VOLTS 3 460 FRME 56 STATOR DIAMETER 6.3 STACK 2.625 MOUNTING RIGID MOTOR TYPE FHP OPPOSITE END BEARING 6203 SHAFT END BEARING 6203 AMBIENT 40 ROTATION REVERSIBLE SERVICE FACTOR 1.15 SHIPPING WEIGHT 27 THERMAL PROTECTION NONE BREAKDOWN TORQUE 165.4 BREAKDOWN TORQUE UOM OZFT LOCKED ROTOR TORQUE 113.1 LOCKED ROTOR TORQUE UOM OZFT INSULATION CLASS F KVA CODE LETTER L LOCKED ROTOR AMPS 16.11 NEMA NOMINAL EFFICIENCY 82.5 FULL LOAD AMPS PRIMARY 2.6-2.4/1.2 SERVICE FACTOR AMPS PRIMARY 2.6/1.3 SHAFT CODE Y
