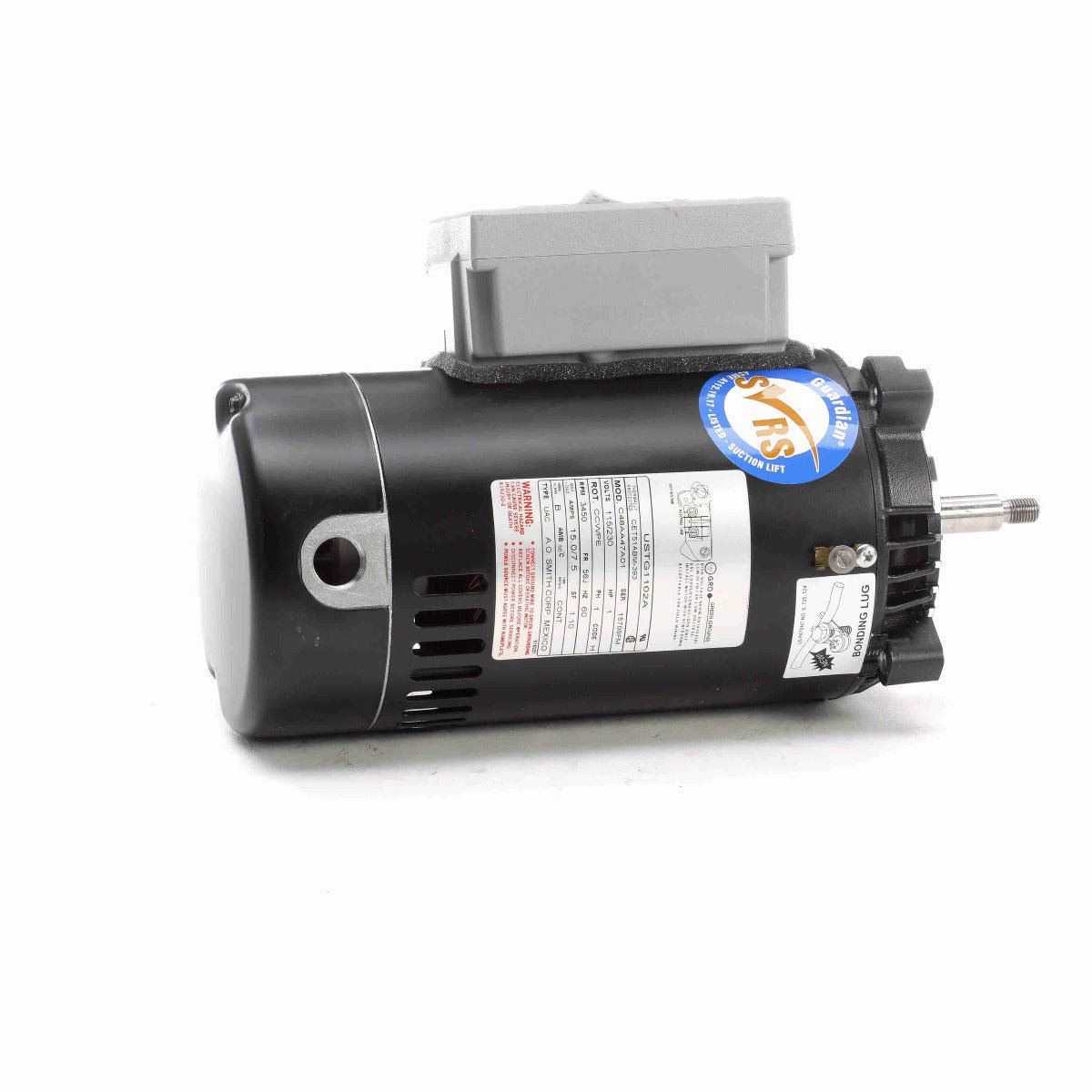

* Image is for reference only

USTG1102A Century Motor 1HP 3450RPM 56J ODP 115-230 Volt 1 Phase

SKU: USTG1102A
$119.38
Sale $119.38
Description
  • Sealed Switch Design
  • UL 1081 Design
  • 50°C Ambient
  • 304 Bearing Shaft End
  • 303 Stainless Steel Shaft
  • Threaded Shaft
  • Capacitor Start-Capacitor Run
  • Safety Vacuum Release System (SVRS)
  • Auto Reset
  • Auto Calibration
  • Compatible with All Flow Rates
  • Open Dripproof

Alternate Part #'s

USTG1102, USTG1102A, _USTG1102A

Specifications

Nameplate Specifications

Phase: 1 Output HP: 1 Hp
Output KW: 0.75 kW Voltage: 230/115 V
Speed: 3450 rpm Service Factor: 1.1
Frame: 56J Enclosure: Open Drip Proof
Thermal Protection: Automatic Ambient Temperature: 50 °C
Frequency: 60 Hz Current: 7.5/15.0 A
Duty: Continuous Insulation Class: B
UL: Recognized CSA: Y
Number of Speeds: 1

Technical Specifications

Electrical Type: Cap Start Motor Starting Method: Across The Line
Poles: 2 Rotation: Counterclockwise Pump End
Mounting: Round Motor Orientation: Horizontal
Drive End Bearing: Ball Opp Drive End Bearing: Ball
Frame Material: Rolled Steel Shaft Type: 7/16 Thread
Overall Length: 13.53 in Frame Length: 7.75 in
Shaft Diameter: 0.625 in Shaft Extension: 2.56 in

General Specifications

UPC: 786674033338 Weight: 22.00 LB
Packaged Length: 16.00 IN Packaged Width: 9.50 IN
Packaged Height: 9.50 IN HTC: 8501.40.6040
Country of Origin: Thailand
