Home » XS34CA1J Motors 3/4HP 3600RPM 56 TEFC 115/208-230V 1 Phase Model CH63AAF1005015B
XS34CA1J US 3/4HP Motors

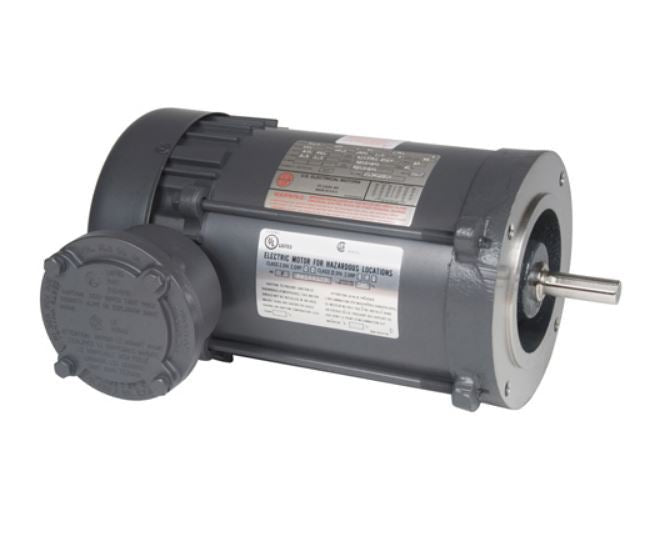

XS34CA1J Motors 3/4HP 3600RPM 56 TEFC 115/208-230V 1 Phase Model CH63AAF1005015B

In stock
SKU: XS34CA1J
$672.68
$1,004.00 Sale $672.68

Product details

  • SKU XS34CA1J
  • GTIN 786382071219
  • Brand US Motors
  • Phase 1
  • RPM 1801-3600
  • HP / KW 3/4 (.75)
  • Application Severe Duty
  • Frame 56
  • Enclosure TOTALLY ENCLOSED
  • Voltage 115/208-230V
  • Flange C-Face Footed

Share

Description Reviews

Model CH63AAF1005015B

  • For use on air compressors, pumps, conveyors, blowers and general industrial equipment located in hazardous areas.

About This Single Phase Motor:

  • UL®† Listed & CSA®† Certified
  • Temperature Code T3C
  • Class B Insulation
  • Continuous Duty
  • 40°C Ambient Rated
  • F1 Assembly
  • Automatic Reset Thermal Protector Overload
  • Energy Efficient

 Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.
