Home » XS13CA2JCR Motors 1/3HP 1800RPM 56C TEFC 115/208-230V 1 Phase Model CH63ABP1035015B
XS13CA2JCR US 1/3HP Motors

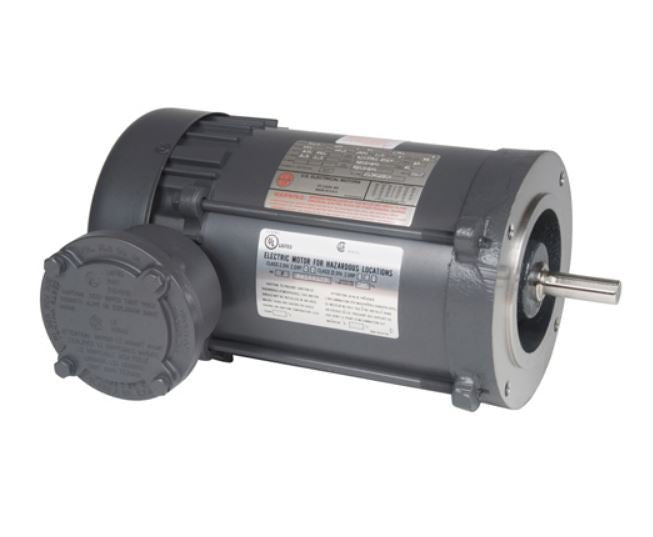

XS13CA2JCR Motors 1/3HP 1800RPM 56C TEFC 115/208-230V 1 Phase Model CH63ABP1035015B

SKU: XS13CA2JCR
$526.62
$786.00 Sale $526.62

Product details

  • SKU XS13CA2JCR
  • GTIN 786382071479
  • Brand US Motors
  • Phase 1
  • RPM 1201-1800
  • HP / KW 1/3 (.33)
  • Application Severe Duty
  • Frame 56C
  • Enclosure TOTALLY ENCLOSED
  • Voltage 115/208-230V
  • Flange C-Face Footless

Share

Description Reviews

Model CH63ABP1035015B

  • For use on air compressors, pumps, conveyors, blowers and general industrial equipment located in hazardous areas.

About This Single Phase Motor:

  • UL®† Listed & CSA®† Certified
  • Temperature Code T3C
  • Class B Insulation
  • Continuous Duty
  • 40°C Ambient Rated
  • F1 Assembly
  • Automatic Reset Thermal Protector Overload
  • Energy Efficient

 Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.
