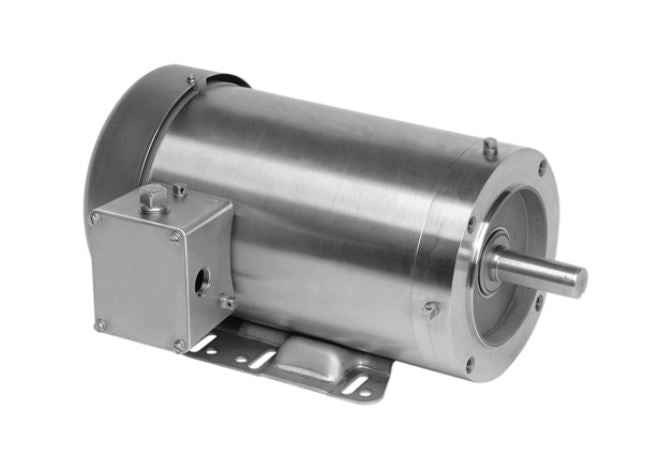

WDS12S2ACR US Motors 1/2HP 1800RPM 56C TENV 208-230/460V 3 Phase Model BK19

In stock
SKU: WDS12S2ACR
Regular price $1,488.00

Product details

  • SKU WDS12S2ACR
  • GTIN 786382053253
  • Brand US Motors
  • Phase 3
  • RPM 1201-1800
  • HP / KW 1/2 (.5)
  • Application Washdown - Stainless Steel
  • Frame 56C
  • Enclosure TOTALLY ENCLOSED
  • Voltage 208-230/460V
  • Flange C-Face Footless

Model BK19

Buy US Motors WDS12S2ACR by Nidec (Emerson) for a reliable AC electrical motor.

Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.

  • Suitable for food processors, canners, meat packers, bakeries, dairies, drug and cosmetic manufacturers for sanitary, easily cleaned motors.

This three phase motor is equipped with:

  • All Stainless Steel External Construction
  • 40°C Ambient, NEMA®† Design B
  • INVERTER GRADE® Insulation System
  • 303 Stainless Steel Shaft
  • Multiple Stainless Steel T-type Drains
  • Rust Inhibitor on Rotor
  • BISSC®† Certified
  • VBX®† Bearing Isolators by Inpro/Seal On Drive End
  • Double Sealed Ball Bearings
  • Laser-Etched Oversized Nameplate
  • RTV-Sealed Lead Exit Holes
  • Moisture Resistant Gasketed Conduit Box With NPT Lead Holes
  • Easy to Read Connection Leads



 Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.
