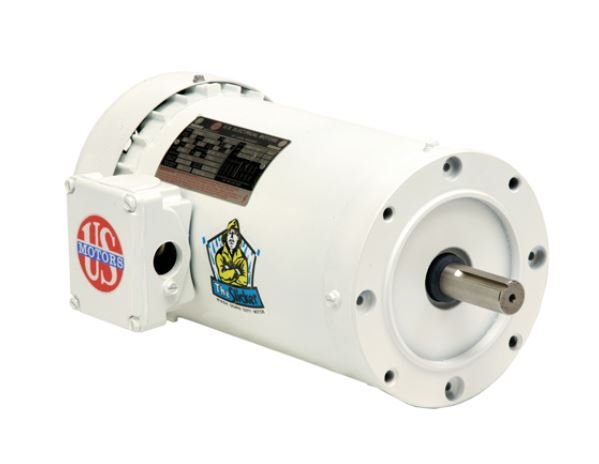

WD5P2DCR US 5HP Motor

WD5P2DCR US Motors 5HP 1800RPM 184TC TEFC 208-230/460V 3 Phase Model DD51

SKU: WD5P2DCR
$1,144.36
$1,708.00 Sale $1,144.36

Product details

  • SKU WD5P2DCR
  • GTIN 786382098070
  • Brand US Motors
  • Phase 3
  • RPM 1201-1800
  • HP / KW 5
  • Application Washdown - Painted
  • Frame 182/4TC
  • Enclosure TOTALLY ENCLOSED
  • Voltage 208-230/460V
  • Flange C-Face Footless

Share

Description Reviews

Model DD51

Buy US Motors WD5P2DCR by Nidec (Emerson) for a reliable AC electrical motor.

Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.

  • Suitable for food processors, canners, meat packers, bakeries, dairies, drug and cosmetic manufacturers for sanitary, easily cleaned motors.

This three phase motor is equipped with:

  • Class F Insulation, Class B Rise At Full Load On 60 Hertz Sine Wave Power
  • BISSC®† Certified, Smooth Design For Easy Cleaning
  • USDA®† Approved Non-Toxic White Epoxy Paint
  • Moisture Resistant Gasketed Conduit Box With NPT Lead Holes
  • V-Ring Rotating Shaft Seals
  • 40°C Ambient, NEMA®† Design B Performance On 60 Hertz Sine Wave Power



 Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.
