Home » WD3S1ACR US Motors 3HP 3600RPM 56C TEFC 208-230/460V 3 Phase Model P063GCY4478015B
WD3S1ACR US 3HP Motor

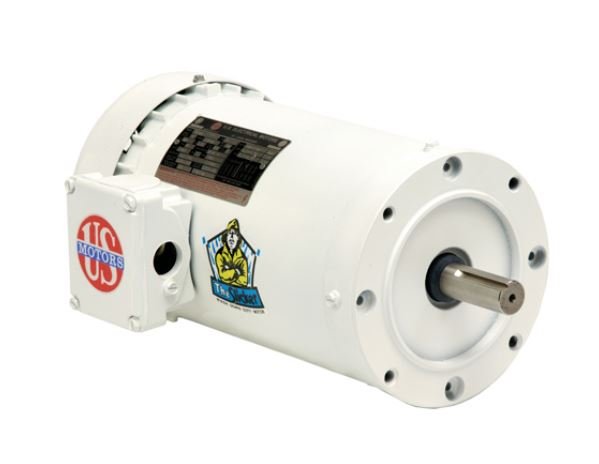

WD3S1ACR US Motors 3HP 3600RPM 56C TEFC 208-230/460V 3 Phase Model P063GCY4478015B

SKU: WD3S1ACR
$544.04
$812.00 Sale $544.04

Product details

  • SKU WD3S1ACR
  • GTIN 786382071158
  • Brand US Motors
  • Phase 3
  • RPM 1801-3600
  • HP / KW 3
  • Application Washdown - Painted
  • Frame 56C
  • Enclosure TOTALLY ENCLOSED
  • Voltage 208-230/460V
  • Flange C-Face Footless

Share

Description Reviews

Model P063GCY4478015B

Buy US Motors WD3S1ACR by Nidec (Emerson) for a reliable AC electrical motor.

Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.

  • Suitable for food processors, canners, meat packers, bakeries, dairies, drug and cosmetic manufacturers for sanitary, easily cleaned motors.

This three phase motor is equipped with:

  • Class F Insulation, Class B Rise At Full Load On 60 Hertz Sine Wave Power
  • BISSC®† Certified, Smooth Design For Easy Cleaning
  • USDA®† Approved Non-Toxic White Epoxy Paint
  • Moisture Resistant Gasketed Conduit Box With NPT Lead Holes
  • V-Ring Rotating Shaft Seals
  • 40°C Ambient, NEMA®† Design B Performance On 60 Hertz Sine Wave Power



 Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.
