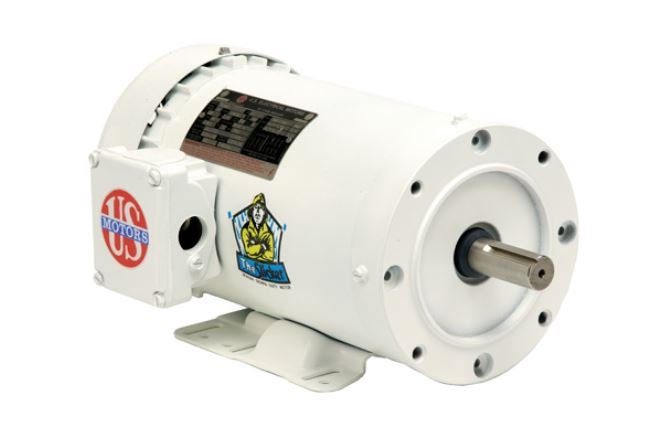

WD3P1DC US 3HP Motor

WD3P1DC US Motors 3HP 3600RPM 145TC TEFC 208-230/460V 3 Phase Model FA01

SKU: WD3P1DC
$1,069.32
$1,596.00 Sale $1,069.32

Product details

  • SKU WD3P1DC
  • GTIN 786382106522
  • Brand US Motors
  • Phase 3
  • RPM 1801-3600
  • HP / KW 3
  • Application Washdown - Painted
  • Frame 182/4TC
  • Enclosure TOTALLY ENCLOSED
  • Voltage 208-230/460V
  • Flange C-Face Footed

Share

Description Reviews

Model FA01

Buy US Motors WD3P1DC by Nidec (Emerson) for a reliable AC electrical motor that lasts.

Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.

  • Suitable for food processors, canners, meat packers, bakeries, dairies, drug and cosmetic manufacturers for sanitary, easily cleaned motors.

This three phase motor is equipped with:

  • Class F Insulation, Class B Rise At Full Load On 60 Hertz Sine Wave Power
  • BISSC®† Certified, Smooth Design For Easy Cleaning
  • USDA®† Approved Non-Toxic White Epoxy Paint
  • Moisture Resistant Gasketed Conduit Box With NPT Lead Holes
  • V-Ring Rotating Shaft Seals
  • 40°C Ambient, NEMA®† Design B Performance On 60 Hertz Sine Wave Power



 Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.
