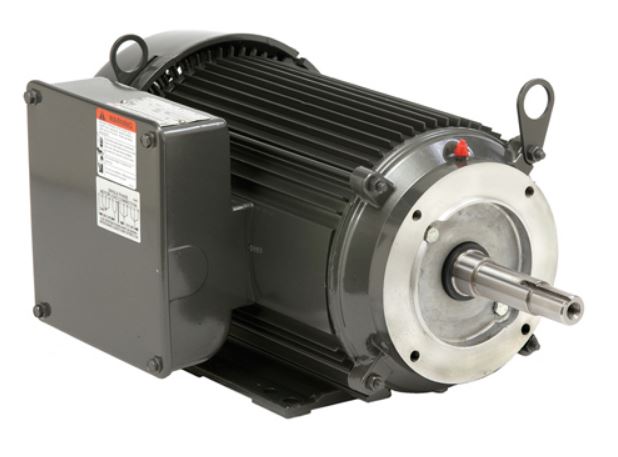

UJ7C2K21P US Motors 7.5HP 1800RPM 215JP TEFC 230V 1 Phase Model G72015

SKU: UJ7C2K21P
Regular price $937.46
Regular price Sale Sale price $937.46
Description

Model: G72015

Buy US Motors UJ7C2K21P by Nidec (Emerson) for a reliable AC electrical motor.

Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.

  • For the specific requirements of centrifugal pumps where the pump impeller is mounted directly on the motor shaft.
    Used where dirt and moisture are minimal.

This single phase motor features:

  • Class F Insulation
  • Extruded Aluminum Frame
  • Oversized Ball Bearings w/Locked Shaft End Construction
  • Reversible Rotation
  • F1 Assembly Position
  • Aluminum End Shields with Steel Bearing Inserts
  • Shaft Slinger On Pulley End For IP54 Protection
  • Lifting Provisions
  • “JM” Shaft For Mechanical Seal, “JP” Shaft for Packing Seal



 Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.

SPECS:
MFR # UJ7C2K21P Zoro # G0399714
UPC # 786382047139 Country of Origin Mexico

Dimensions

Length Less Shaft 18 1/16 in Body Dia. 11.3 in
Height 10 7/8 in Shaft Dia. 7/8 in

Details

Item Pump Motor Motor Design Permanent Split Capacitor
Motor Enclosure Design Totally Enclosed Fan-Cooled HP 7 1/2
Nameplate RPM 1,725 Frame 215
Voltage 230V AC Nominal Efficiency 81.1 %
Motor Frame Material Aluminum Full Load Amps 33.5
Motor Mounting Type Rigid Base Ins. Class F
Phase Single Motor Service Factor 1.15
Motor Application Centrifugal Pump Hz 60 Hz
No. of Speeds 1 Duty Cycle Continuous
Weight 120 lb Max. Ambient Temp. 40 Degrees C
Part Winding Start Capable No Bearing Protection Shaft Shields
Motor Shaft Design 1.25
