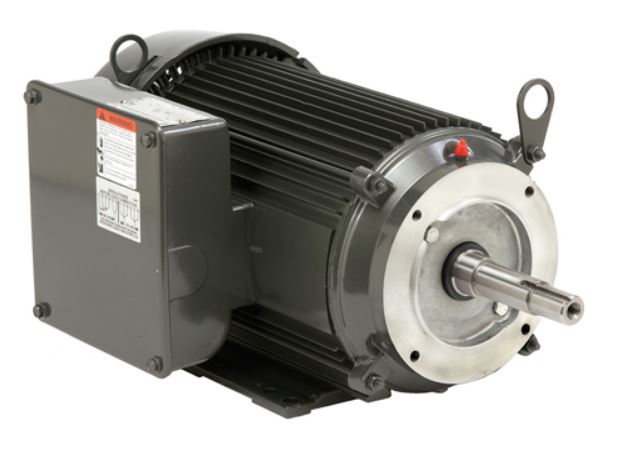

UJ7C1K21P US Motors 7.5HP 3600RPM 215JP TEFC 230V 1 Phase Model G72013

SKU: UJ7C1K21P
Regular price $1,087.38
Regular price Sale Sale price $1,087.38
Description

Model: G72013

Buy US Motors UJ7C1K21P by Nidec (Emerson) for a reliable AC electrical motor.

Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.

  • For the specific requirements of centrifugal pumps where the pump impeller is mounted directly on the motor shaft.
    Used where dirt and moisture are minimal.

This single phase motor features:

  • Class F Insulation
  • Extruded Aluminum Frame
  • Oversized Ball Bearings w/Locked Shaft End Construction
  • Reversible Rotation
  • F1 Assembly Position
  • Aluminum End Shields with Steel Bearing Inserts
  • Shaft Slinger On Pulley End For IP54 Protection
  • Lifting Provisions
  • “JM” Shaft For Mechanical Seal, “JP” Shaft for Packing Seal



 Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.

SPECS:
MFR # UJ7C1K21P Zoro # G0399784
UPC # 786382047115 Country of Origin Mexico

Dimensions

Shaft Dia. 7/8 in Length Less Shaft 18 1/16 in
Body Dia. 11.3 in Height 10 7/8 in

Details

Item Pool and Spa Pump Motor Motor Design Permanent Split Capacitor
Motor Enclosure Design Totally Enclosed Fan-Cooled HP 7 1/2
Nameplate RPM 3,480 Frame 215
Voltage 230V AC Motor Mounting Type Rigid Base
Motor Application Pump Hz 60 Hz
Nominal Efficiency 83.9 % Ins. Class F
Full Load Amps 30.3 Phase Single
Motor Service Factor 1.15 Motor Sub Application Centrifugal Pump
Motor Frame Material Aluminum Bearing Protection Shaft Shields
Weight 180 lb Duty Cycle Continuous
Part Winding Start Capable No Max. Ambient Temp. 40 Degrees C
No. of Speeds 1 Motor Shaft Design 1.25
