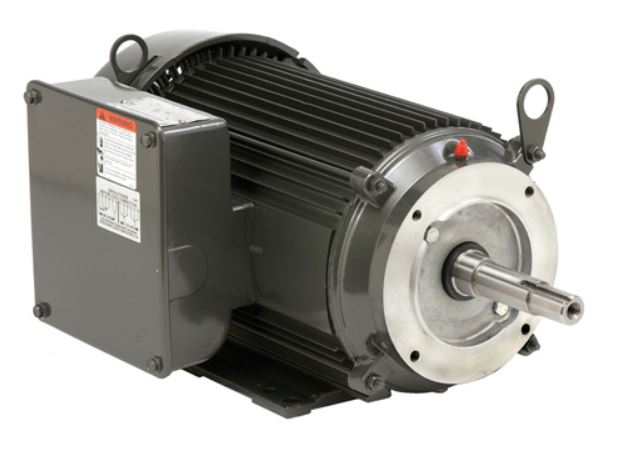

UJ5C2K21P US Motors 5HP 1800RPM 215JP TEFC 230V 1 Phase Model G72010

SKU: UJ5C2K21P
Regular price $863.60
Regular price Sale Sale price $863.60
Description

Model: G72010

Buy US Motors UJ5C2K21P by Nidec (Emerson) for a reliable AC electrical motor.

Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.

  • For the specific requirements of centrifugal pumps where the pump impeller is mounted directly on the motor shaft.
    Used where dirt and moisture are minimal.

This single phase motor features:

  • Class F Insulation
  • Extruded Aluminum Frame
  • Oversized Ball Bearings w/Locked Shaft End Construction
  • Reversible Rotation
  • F1 Assembly Position
  • Aluminum End Shields with Steel Bearing Inserts
  • Shaft Slinger On Pulley End For IP54 Protection
  • Lifting Provisions
  • “JM” Shaft For Mechanical Seal, “JP” Shaft for Packing Seal



 Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.

SPECS:

MFR # UJ5C2K21P Zoro # G0390580
UPC # 786382046934 Country of Origin Mexico

Dimensions

Length Less Shaft 18 1/16 in Shaft Dia. 7/8 in
Overall Length 26 3/16 in Body Dia. 11.3 in
Height 10 7/8 in

Details

Item Pump Motor Motor Design Permanent Split Capacitor
Motor Enclosure Design Totally Enclosed Fan-Cooled HP 5
Nameplate RPM 1,730 Frame 215
Voltage 230V AC Motor Mounting Type Rigid Base
Hz 60 Hz Motor Service Factor 1.15
Nominal Efficiency 82.4 % Ins. Class F
Motor Frame Material Aluminum Phase Single
Full Load Amps 23.0 Motor Application Centrifugal Pump
Weight 90 lb Part Winding Start Capable No
No. of Speeds 1 Max. Ambient Temp. 40 Degrees C
Bearing Protection Shaft Shields Duty Cycle Continuous
Motor Shaft Design 1.25
