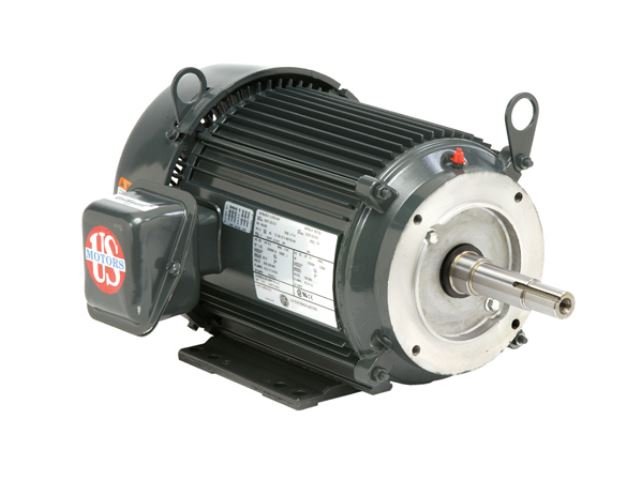

* Image is for reference only

UJ25P1DP US Motors 25HP 3600RPM 284JP TEFC 208-230/460V 3 Phase Model FL49

SKU: UJ25P1DP
$2,628.85
Sale $2,628.85
Description

Model: FL49

Buy US Motors UJ25P1DP by Nidec (Emerson) for a reliable AC electrical motor.

Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.

  • For the specific requirements of centrifugal pumps where the pump impeller is mounted directly on the motor shaft. Used in damp, dusty or dirty environments

This three phase motor features:

  • Class F Insulation, Class B Rise At Full Load On
    60 Hertz Sine Wave Power
  • Cast Iron Frame 280 & Up, Aluminum 180-250,
    Rolled Steel 140
  • Cast Iron End Brackets 280 & Up, 250 Frame and
    Lower Has Aluminum With Steel Bearing Inserts
  • 40°C Ambient, NEMA®† Design B Performance
    On 60 Hertz Sine Wave Power
  • Regreasable Shaft End Bearing 180 Frame & Up
  • Double Shielded Bearings
  • Removable Base (180 - 250 Frame)
  • Lifting Provisions 180 Frame & Up
  • "CE" Mark On Nameplate



 Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.

SPECS:
MFR # UJ25P1DP Zoro # G0403409
UPC # 786382114268 Country of Origin Mexico

Dimensions

Length Less Shaft 23 7/8 in Shaft Dia. 7/8 in
Overall Length 32 in Height 13 11/16 in
Bolt Circle Dia. 15/16 in Body Dia. 13.4 in

Details

Item Pool and Spa Pump Motor Motor Design 3-Phase
Motor Enclosure Design Totally Enclosed Fan-Cooled HP 25
Nameplate RPM 3,530 Frame 284
Motor Shaft Rotation CW/CCW Voltage 208-230/460V AC
Motor Service Factor 1.25 Phase Three
Motor Mounting Type Rigid Base Motor Application Pump
Motor Sub Application Centrifugal Pump Nominal Efficiency 91.7 %
Hz 60/50 Motor Frame Material Cast Iron
Motor Mounting Position Horizontal Ins. Class F
Full Load Amps 65.0-57.0/28.4 Usable @ 208V Yes
Max. SF Amps 0-74.0/37.0 Weight 280 lb
Regreasable Bearings Regreasable Bearings Part Winding Start Capable No
Conduit Box Position F1 Bearing Protection Shaft Shields
No. of Speeds 1 Max. Ambient Temp. 40 Degrees C
Duty Cycle Continuous Motor Shaft Design 1.25
