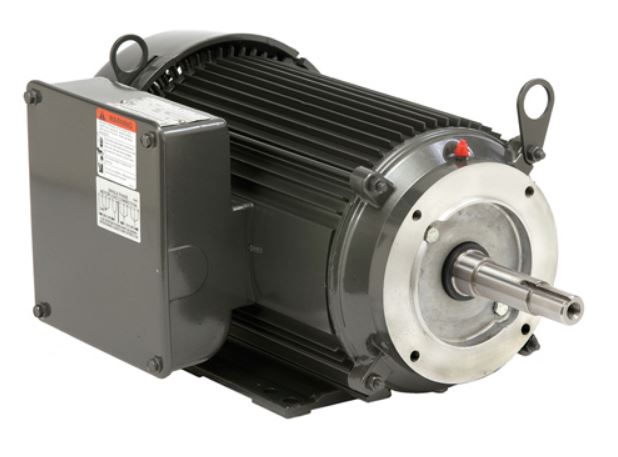

UJ10C2K21M US Motors 10HP 1800RPM 215JM TEFC 230V 1 Phase Model G72019
SKU:
UJ10C2K21M
Regular price
$1,238.74
Regular price
Sale
Sale price
$1,238.74
- Description
- SPECS:
Description
Model: G72019
Buy US Motors UJ10C2K21M by Nidec (Emerson) for a reliable AC electrical motor.
Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.
- For the specific requirements of centrifugal pumps where the pump impeller is mounted directly on the motor shaft.
Used where dirt and moisture are minimal.
This single phase motor features:
- Class F Insulation
- Extruded Aluminum Frame
- Oversized Ball Bearings w/Locked Shaft End Construction
- Reversible Rotation
- F1 Assembly Position
- Aluminum End Shields with Steel Bearing Inserts
- Shaft Slinger On Pulley End For IP54 Protection
- Lifting Provisions
- “JM” Shaft For Mechanical Seal, “JP” Shaft for Packing Seal
Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.
SPECS:
| MFR # | UJ10C2K21M | Zoro # | G0390605 |
| UPC # | 786382045524 | Country of Origin | Mexico |
Dimensions
| Shaft Dia. | 7/8 in | ||
Details
| Item | Pool and Spa Pump Motor | Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled | HP | 10 |
| Nameplate RPM | 1,725 | Frame | 215 |
| Voltage | 230V AC | Full Load Amps | 43.0 |
| Motor Application | Pump | Phase | Single |
| Motor Mounting Type | Rigid Base | Motor Frame Material | Aluminum |
| Ins. Class | F | Motor Sub Application | Centrifugal Pump |
| Motor Service Factor | 1.15 | Hz | 60 Hz |
| Weight | 210 lb | Max. Ambient Temp. | 40 Degrees C |
| Part Winding Start Capable | No | Bearing Protection | Shaft Shields |
| No. of Speeds | 1 | Duty Cycle | Continuous |
