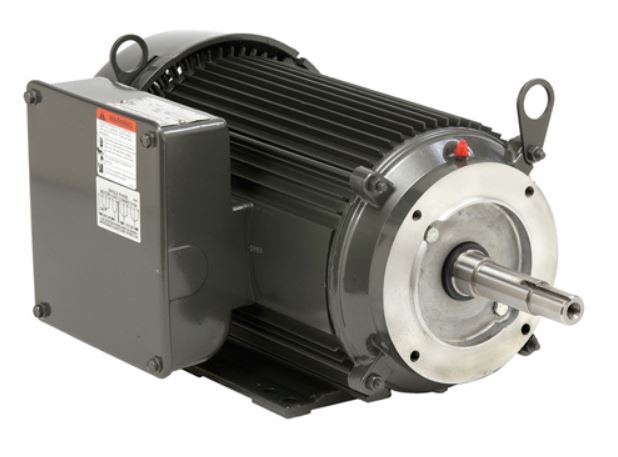

UJ10C1K21P US Motors 10HP 3600RPM 215JP TEFC 230V 1 Phase Model G72016

SKU: UJ10C1K21P
Regular price $1,325.76
Regular price Sale Sale price $1,325.76
Description

Model: G72016

Buy US Motors UJ10C1K21P by Nidec (Emerson) for a reliable AC electrical motor.

Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.

  • For the specific requirements of centrifugal pumps where the pump impeller is mounted directly on the motor shaft.
    Used where dirt and moisture are minimal.

This single phase motor features:

  • Class F Insulation
  • Extruded Aluminum Frame
  • Oversized Ball Bearings w/Locked Shaft End Construction
  • Reversible Rotation
  • F1 Assembly Position
  • Aluminum End Shields with Steel Bearing Inserts
  • Shaft Slinger On Pulley End For IP54 Protection
  • Lifting Provisions
  • “JM” Shaft For Mechanical Seal, “JP” Shaft for Packing Seal



 Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.

SPECS:
MFR # UJ10C1K21P Zoro # G0399629
UPC # 786382045517 Country of Origin Mexico

Dimensions

Length Less Shaft 18 1/16 in Shaft Dia. 7/8 in
Height 10 7/8 in Body Dia. 11.3 in

Details

Item Pump Motor Motor Design Permanent Split Capacitor
Motor Enclosure Design Totally Enclosed Fan-Cooled HP 10
Nameplate RPM 3,500 Frame 215
Voltage 230V AC Hz 60 Hz
Motor Application Centrifugal Pump Motor Mounting Type Rigid Base
Full Load Amps 40.0 Phase Single
Motor Frame Material Aluminum Nominal Efficiency 86.9 %
Motor Service Factor 1.15 Ins. Class F
Max. SF Amps 45.0 Duty Cycle Continuous
Weight 145 lb Part Winding Start Capable No
Max. Ambient Temp. 40 Degrees C Bearing Protection Shaft Shields
No. of Speeds 1 Motor Shaft Design 1.25
