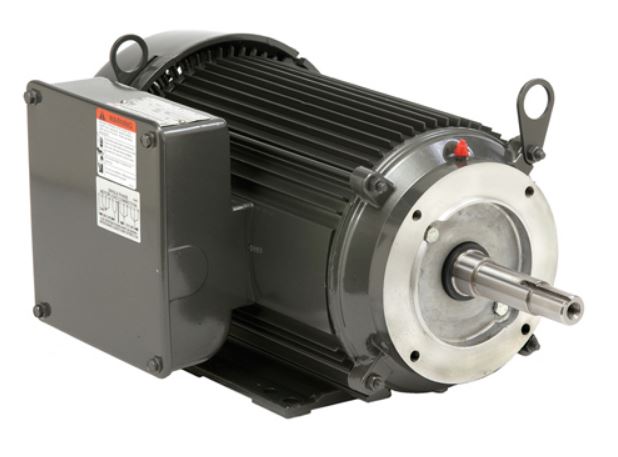

UJ10C1K21M US Motors 10HP 3600RPM 215JM TEFC 230V 1 Phase Model G72017
SKU:
UJ10C1K21M
Regular price
$1,325.76
Regular price
Sale
Sale price
$1,325.76
- Description
- SPECS:
Description
Model: G72017
Buy US Motors UJ10C1K21M by Nidec (Emerson) for a reliable AC electrical motor.
Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.
- For the specific requirements of centrifugal pumps where the pump impeller is mounted directly on the motor shaft.
Used where dirt and moisture are minimal.
This single phase motor features:
- Class F Insulation
- Extruded Aluminum Frame
- Oversized Ball Bearings w/Locked Shaft End Construction
- Reversible Rotation
- F1 Assembly Position
- Aluminum End Shields with Steel Bearing Inserts
- Shaft Slinger On Pulley End For IP54 Protection
- Lifting Provisions
- “JM” Shaft For Mechanical Seal, “JP” Shaft for Packing Seal
Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.
SPECS:
| MFR # | UJ10C1K21M | Zoro # | G0399705 |
| UPC # | 786382045500 | Country of Origin | Mexico |
Dimensions
| Shaft Dia. | 7/8 in | Length Less Shaft | 18 1/16 in |
| Body Dia. | 11.3 in | Height | 10 7/8 in |
Details
| Item | Pump Motor | Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled | HP | 10 |
| Nameplate RPM | 3,500 | Frame | 215 |
| Voltage | 230V AC | Motor Frame Material | Aluminum |
| Motor Mounting Type | Rigid Base | Nominal Efficiency | 86.9 % |
| Ins. Class | F | Motor Application | Centrifugal Pump |
| Full Load Amps | 40.0 | Phase | Single |
| Motor Service Factor | 1.15 | Hz | 60 Hz |
| Duty Cycle | Continuous | Part Winding Start Capable | No |
| Max. SF Amps | 45.0 | Bearing Protection | Shaft Shields |
| No. of Speeds | 1 | Max. Ambient Temp. | 40 Degrees C |
| Weight | 210 lb | Motor Shaft Design | 1.25 |
