Model # DY91

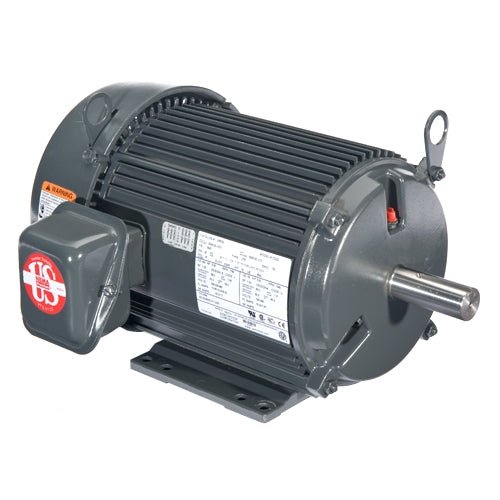

US Nidec motor U7P3D is a durable industrial machine with premium design and construction. Rolled steel construction and totally enclosed, fan cooled frame to keep dirt and moisture out. This general purpose AC motor can be used for pumps, fans, machinery and more.
Enjoy quiet, long lasting operation with the precision factory dynamic balanced rotor. Shaft has a key half the same length as the full key that is shipped with the motor.
More 7.5hp motor features:
- Drive end slinger
- Quality double shielded bearings
- Class F Insulation
- "CE" Mark on Nameplate
- 40°C Ambient, NEMA®† Design B Performance On 60 Hz
- Sine Wave Power Sine Wave Power
- 40°C Ambient
- Dual Voltage Ratings Suitable For Part Winding Start (PWS) On Low Voltage
Motor has inverter duty wire for VFD (variable frequency drive) compatibility. Nidec Motor Corporation has developed specific motor designs to decrease the harmful affects that a drive can have on a motor, including the INVERTER GRADE® insulation system and thermostats that are installed as a minimum protection against over heating the motor.
