Model # AS68

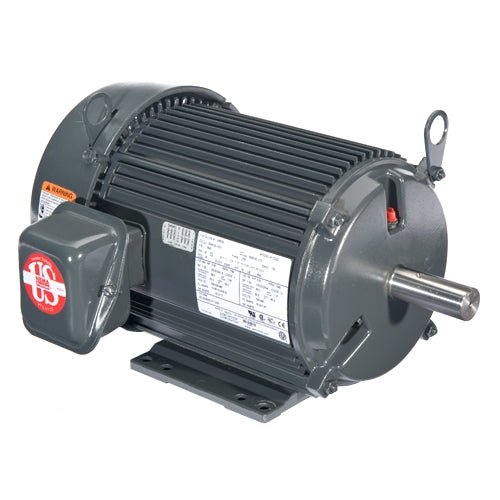

US Nidec motor U7P2D is a durable industrial machine with premium design and construction. Totally enclosed frame can be used indoors or out for a wide range of applications such as pumps, blowers, compressors, and more.
Dynamic balanced at the factory with a key half the same length as the full key that is shipped with the motor. A rolled steel body is lighter than cast iron but just as strong - be sure to mount the machine on a firm, flat surface that is sufficiently rigid enough to prevent vibration.
More 7.5hp motor features:
- Class F Insulation, Class B Rise At Full Load On 60 Hertz Sine Wave Power
- "CE" Mark on Nameplate
- Shaft Slinger On Pulley End
- 40°C Ambient, NEMA®† Design B Performance On 60 Hz
- Sine Wave Power Sine Wave Power
- Double Shielded Bearings
- 40°C Ambient, NEMA®† Design B Performance On 60 Hertz Sine Wave Power
- Dual Voltage Ratings Suitable For Part Winding Start (PWS) On Low Voltage
Inverter duty wire for VFD (variable frequency drive) compatibility. Nidec Motor Corporation has developed specific motor designs to decrease the harmful affects that a VFD can have on a motor, including the INVERTER GRADE® insulation system and thermostats that are installed as a minimum protection against over heating the motor.
