Model # A434

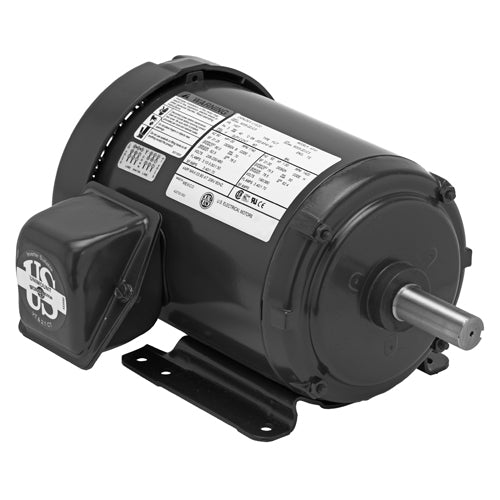

Buy US Emerson motor U5P3D for a reliable AC industrial motor. Use this totally enclosed machine for pumps, fans, compressors, and more. Dynamic balanced rotor and quality partsd for less wear and long lasting performance.
More 5hp low speed motor specs include:
- Rolled Steel Frame
- Inverter duty
- Class F Insulation, Class B Rise At Full Load On 60 Hertz Sine Wave Power
- "CE" Mark on Nameplate
- Shaft Slinger On Pulley End
- 40°C Ambient, NEMA®† Design B Performance On 60 Hz
- Sine Wave Power Sine Wave Power
- Double Shielded Bearings
- 40°C Ambient, NEMA®† Design B Performance On 60 Hertz Sine Wave Power
- Dual Voltage Ratings Suitable For Part Winding Start (PWS) On Low Voltage
Slow Speed Motors and VFDs: Motors with a base design of slower than six poles require special consideration regarding VFD sizing and minimizing harmonic distortion created at the motor terminals due to cable installation characteristics. Additional external PWM waveform filters and shielded motor cables designed for PWM power may be required to provide acceptable motor life. Harmonic distortion on the output waveform should be kept to a minimum level (less than 10%) mismatch impedence.
