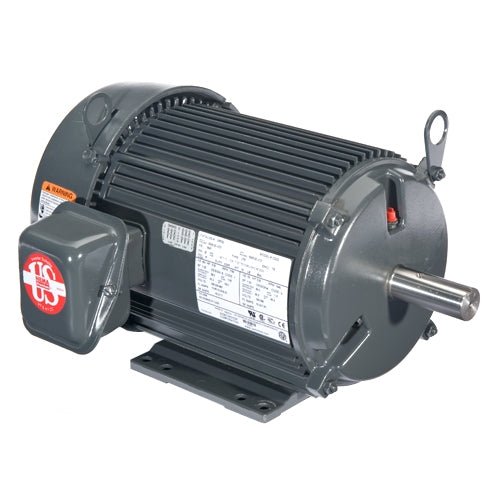

U20P1H US Motors 20HP 3600RPM 256T TEFC 200V 3 Phase DY72

Model # DY72

Nidec US Emerson motor U20P1H by features class F insulation, double shielded bearings, and dual voltage ratings suitable for part windings start (PWS). The totally enclosed frame and shaft slinger help to keep out contaminents and moisture.

Motor has been dynamically balanced with a half key half the same length as the full key being shipped with the motor. The factory dynamic balance shaft provides low vibration for quiet operations.

U20P1H Applications Include:

• Pumps
• Compressors
• Fans
• Blowers
• Machinery
