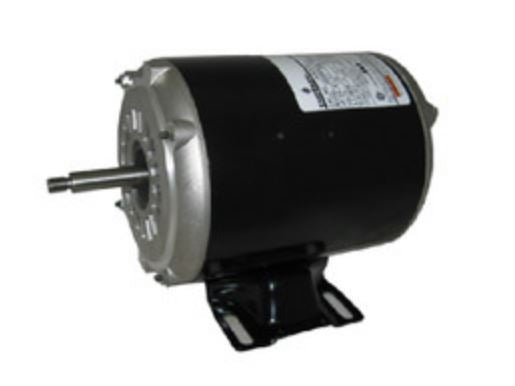

SPH25FL1 US Motors 2.5HP 3600RPM 48Y ODP 1 Phase T055BNC0999R13J

Reliable U.S. Motors SPH25FL1 makes owning a pool or spa more fun with less worry. These 2.5hp pump motors enhance your pool's performance by assisting with balancing the chemistry; cleaning water; and improving energy efficiency.

More pump motor specifications include:

• Model T055BNC0999R13J
• Thru Bolt Mount
• Class B Insulated
• Thermally protected
• 3 O’clock conduit
• 1081, 1563 & 1795 Design
• Sealed ball bearings
• Shaft Threaded
• Rigid Base

• Motor Phase 1 ph
• Motor Horsepower 2-1/2 hp
• Synchronous Rpm 3600 rpm
• Country of Origin MEX
• Motor Supply Voltage 230 V
• Frame Size 48Y
• Enclosure Type ODP (Open Drip-Proof)
• Frequency Rating 60 Hz
• Base RPM 3450 rpm
• Duty Condition Type Continuous Duty
• Mounting Type Thru Bolt / Base
• Thermal Protection Automatic Reset
• Motor Poles 2
• Description Keyword 2-1/2 hp
• Overall Length C Dimension 10.2 in
• Service Factor 1.00
• Frame Material Steel
• Insulation Class F
• Weight 31.5 lbs
• Harmonization Code 8501.40.6040
• UPC_NO 786382040055
• Manufacturer Product Page Click here
• Model T055BNC0999R13J
• Motor Category Pool/Spa Motor
• Max Allowable Current 10 A
• Product Types AC Motors
• Torque 56.45 ft-lbs
• Opposite Drive End Bearing Ball
• Product Type General Purpose Motors
