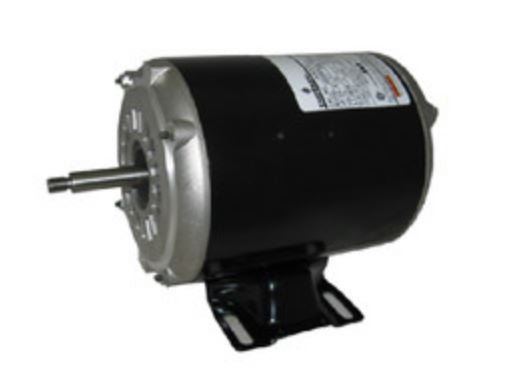

SPH20FL2CS US Motors 2HP 3600RPM 48Y ODP 1 Phase C055JJY4514013J

SKU: SPH20FL2CS
$269.65
Sale $269.65
Description

Reliable U.S. Motors SPH20FL2CS makes owning a pool or spa more fun with less worry. These 2hp pump motors enhance your pool's performance by assisting with balancing the chemistry; cleaning water; and improving energy efficiency.

More pump motor specifications include:

  • Model C055JJY4514013J
  • Thru Bolt Mount
  • Class B Insulated
  • Thermally protected
  • 3 O’clock conduit
  • 1081, 1563 & 1795 Design
  • Sealed ball bearings
  • Shaft Threaded
  • Rigid Base
  • Two Speed, Soft Start
SPECS:

Dimensions

Shaft Dia. 1/2 in
Shaft Length 2 3/8 in
Overall Length 13 in
Bolt Circle Dia. 5 1/8 in
Manufacturers Warranty Length 24 mo
Length Less Shaft 10 5/8 in
Height 8 1/4 in

Details

Item Pump Motor
Motor Design Capacitor-Start
Motor Enclosure Design Open Dripproof
HP 2
Nameplate RPM 3,450/1,725
Frame 48Y
Motor Shaft Rotation CCW
Voltage 230V AC
Motor Mounting Type Rigid Base
Motor Sub Application Pool and Spa Motor
Phase Single
Motor Thermal Protection Auto
Motor Service Factor 1
Ins. Class F
Full Load Amps 10.0/3.4
Standards CE, CSA Certified, ISO9001:2015 Certified, UL Listed
Hz 60 Hz
Max. Ambient Temp. 50 Degrees C
Duty Cycle Continuous
Weight 30 lb
Motor Shaft Design Threaded
No. of Speeds 2
Max. SF Amps 8.6/3.4
