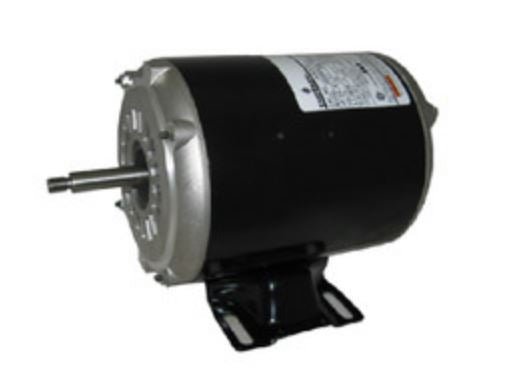

SPH20FL1 US Motors 2HP 3600RPM 48Y ODP 1 Phase T055BLR0968013J

Reliable U.S. Motors SPH20FL1 makes owning a pool or spa more fun with less worry. These 2hp pump motors enhance your pool's performance by assisting with balancing the chemistry; cleaning water; and improving energy efficiency.

More pump motor specifications include:

• Model T055BLR0968013J
• Thru Bolt Mount
• Class B Insulated
• Thermally protected
• 3 O’clock conduit
• 1081, 1563 & 1795 Design
• Sealed ball bearings
• Shaft Threaded
• Rigid Base

• Motor Phase 1 ph
• Motor Horsepower 2 hp
• Synchronous Rpm 3600 rpm
• Country of Origin MEX
• Motor Supply Voltage 230 V
• Frame Size 48Y
• Enclosure Type ODP (Open Drip-Proof)
• Frequency Rating 60 Hz
• Base RPM 3450 rpm
• Duty Condition Type Continuous Duty
• Mounting Type Thru Bolt
• Thermal Protection Automatic Reset
• Motor Poles 2
• Description Pool owners will experience more fun and less worry with our U.S. Motors® brand pool and spa motors. Our hard-working pool and spa motors help keep chemicals balanced, water clean and filter efficiency maximized. Whether you're looking for a new pool and spa motor or a replacement pool pump motor, you can depend on our products for energy efficiency and quality. Our motors work with a variety of brands so we have a solution for you. View our pool and spa pump motor replacement guide.
• Description Keyword 2 hp
• Overall Length C Dimension 10.2 in
• Service Factor 1.00
• Frame Material Steel
• Insulation Class F
• Weight 28 lbs
• Harmonization Code 8501.40.6040
• Manufacturer Upc Number 786382040017
• UPC_NO 786382040017
• Manufacturer Product Page Click here
• Model T055BLR0968013J
• Motor Category Pool/Spa Motor
• Max Allowable Current 8.7 A
• Product Types AC Motors
• Torque 48.4 ft-lbs
• Opposite Drive End Bearing Ball
• Product Type General Purpose Motors
