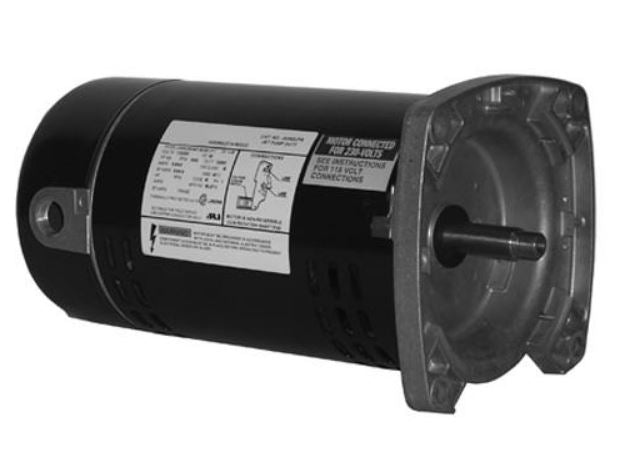

JS075UPR US Pump Motor 3/4HP 3600RPM 48Y ODP 1 Phase C055JTK2009013J

US Nidec JS075UPR is a 3/4hp jet pump for industrial applications. Designed for the specific requirements of centrifugal pumps where the pump impeller is mounted directly on the motor shaft.

ODP enclosure is intended for use where dirt and moisture are minimal. Unit has C-face and feet for mounting. For jet pumps, booster pumps, centrifugal pumps, lawn sprinkler pumps applications.

JP Pump motor features include:

• Model # C055JTK2009013J
• 303 Stainless Steel Shaft
• Ball Bearings (Locked Drive End Bearing)
• Continuous Duty
• 60 Hertz
• EZ-AccessTM Motor Cover
• 40°C Ambient
• Automatic Reset Thermal Overload Protector
• Power Leads Supplied For Proper Connection To Pressure Switch

• Motor Phase 1 ph
• Motor Horsepower 3/4 hp
• Synchronous Rpm 3600 rpm
• Country of Origin MEX
• Motor Supply Voltage 115/230 V
• Frame Size 48Y
• Enclosure Type ODP (Open Drip-Proof)
• Frequency Rating 60 Hz
• Base RPM 3450 rpm
• Duty Condition Type Continuous Duty
• Mounting Type Square Flange
• Thermal Protection Automatic Reset
• Motor Poles 2
• Description Nidec Motor Corporation can be counted on to deliver top-performing fractional HP motors, which have a continuous rating of less than one horsepower. Whether you need a fractional horsepower motor for a commercial, industrial or HVACR application, we offer a U.S. Motors® brand motor suited to your needs. From specially designed and off-the-shelf fractional HP motors through large motors that exceed NEMA Premium®† efficiency standards, our products drive your business. Time is money...and you can't afford to waste it. As a trusted name in the motor industry, Nidec Motor Corporation can help you save both time and money with its efficient and reliable fractional HP motors. Odds are that we have the right fractional horsepower motor to suit your purpose. If not, our engineering teams can custom-design the perfect motor for your specifications. Keep your plant running or your products moving with our innovative and reliable U.S. Motors® brand motors.
• Description Keyword 3/4 hp
• Overall Length C Dimension 11.7 in
• Service Factor 1.27
• Frame Material Steel
• Insulation Class B
• Weight 20 lbs
• Harmonization Code 8501.40.3040
• Manufacturer Upc Number 786382096557
• UPC_NO 786382096557
• Manufacturer Product Page Click here
• Model C055JTK2009013J
• Motor Category Pool/Spa Square Flange Pump Motor
• Max Allowable Current 5.1 A, 10.2 A
• Product Types AC Motors
• Torque 4.196 ft-lbs
• Opposite Drive End Bearing Ball
• Product Type General Purpose Motors
