HW3V2H2 US Motors 3HP 1800RPM 182T TEFC 200V 3 Phase F2
HW3V2H2 US Motors 3HP 1800RPM 182T TEFC 200V 3 Phase F2
In stock
Regular price
$1,111.00
Couldn't load pickup availability
Product details
- SKU HW3V2H2
- GTIN 786382109318
- Brand US Motors
- Phase 3
- RPM 1201-1800
- HP / KW 3
- Application Cooling Tower
- Frame 182/4T
- Enclosure TOTALLY ENCLOSED
- Voltage 200V

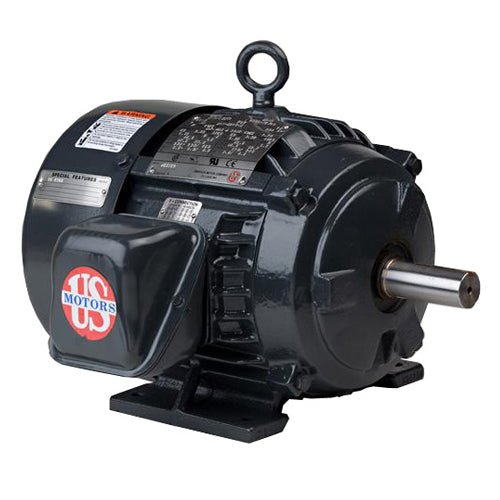

Nidec US Motor HW3V2H2 is a premium electrical motor suitable for cooling towers and other locations with high hunidity. The cast iron body, CORRO-DUTY paint, and stainless steel nameplate help withstand harsh environments.
This 3hp motor features F2 assembly and double drilled feet to accomodate installation.
More features includee:
- Inverter Duty with insultation that exceeds NEMA MG-1 Part 31 standard
- Double dip & bakefor winding protection
- Class F insulation / 40 degree ambient
- Sealed bracket-to-frame registers & leads
- Bearing isolators on wet end for vertical mounting positions
- Double sealed, same size bearings on both ends
- 1.15 service factor
