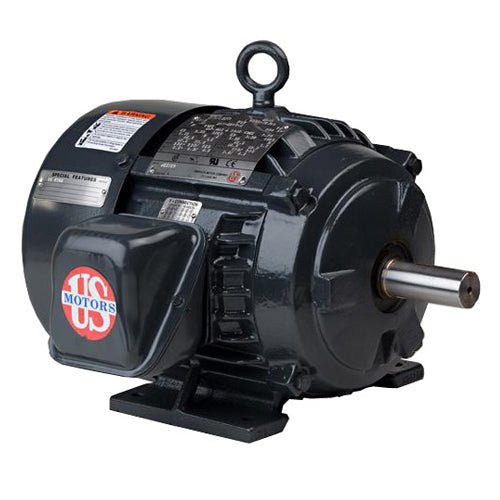

HW2V3E2 US Motors 2HP 1200RPM 184T TEFC 230/460V 3 Phase FH36
HW2V3E2 US Motors 2HP 1200RPM 184T TEFC 230/460V 3 Phase FH36
In stock
Regular price
$1,871.00
Couldn't load pickup availability
Product details
- SKU HW2V3E2
- GTIN 786382109332
- Brand US Motors
- Phase 3
- RPM 901-1200
- HP / KW 2
- Application Cooling Tower
- Frame 182/4T
- Enclosure TOTALLY ENCLOSED
- Voltage 230/460V
Nidec US Motor HW2V3E2 is a premium electrical motor suitable for cooling towers and other locations with high hunidity. The cast iron body, CORRO-DUTY paint, and stainless steel nameplate help withstand harsh environments.
This 2hp motor features F2 assembly and double drilled feet to accomodate installation.
More features includee:
- Model: FH36
- Inverter Duty with insultation that exceeds NEMA MG-1 Part 31 standard
- Double dip & bakefor winding protection
- Class F insulation / 40 degree ambient
- Sealed bracket-to-frame registers & leads
- Bearing isolators on wet end for vertical mounting positions
- Double sealed, same size bearings on both ends
- 1.15 service factor
