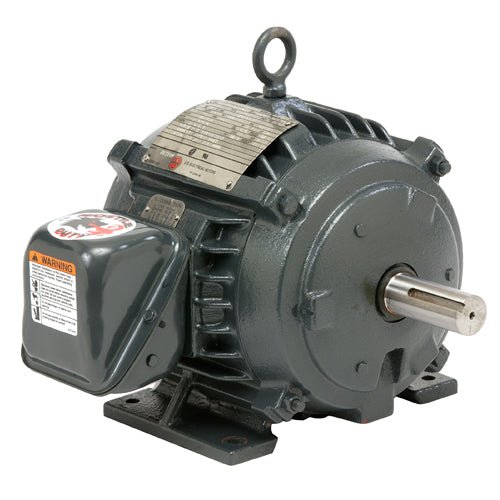

HVW30V3B6 US Motors 30HP 1200RPM 326T TEAO 230/460V 3 Phase FH23
HVW30V3B6 US Motors 30HP 1200RPM 326T TEAO 230/460V 3 Phase FH23
In stock
Regular price
$8,767.00
Couldn't load pickup availability
Product details
- SKU HVW30V3B6
- GTIN 786382119003
- Brand US Motors
- Phase 3
- RPM 901-1200
- HP / KW 30
- Application Cooling Tower
- Frame 324/6T
- Enclosure TOTALLY ENCLOSED
- Voltage 230/460V
Nidec US Motor HVW30V3B6 is a premium electrical motor suitable for cooling towers and other locations with high hunidity. The cast iron body, CORRO-DUTY paint, and stainless steel nameplate help withstand harsh environments.
This 30hp motor features W6 assembly and double drilled feet to accomodate installation.
More features includee:
- Model: FH23
- Inverter Duty with insultation that exceeds NEMA MG-1 Part 31 standard
- Double dip & bakefor winding protection
- Class F insulation / 40 degree ambient
- Sealed bracket-to-frame registers & leads
- Bearing isolators on wet end for vertical mounting positions
- Double sealed, same size bearings on both ends
- 1.15 service factor
