Model HC12

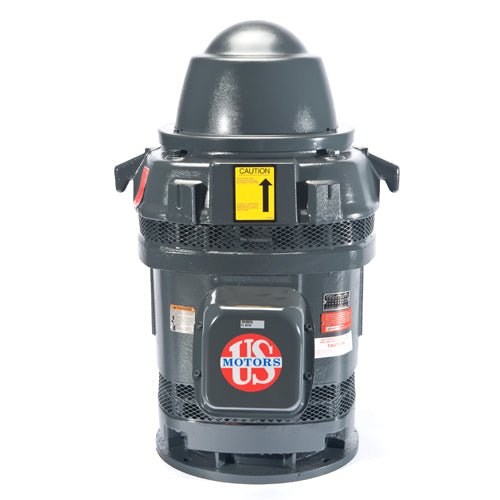

Buy US Motors HT15P2BLE by Nidec (Emerson) for a reliable AC electrical motor that lasts.
Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.
- For use on turbine, mix flow and propeller pumps.
This 3 phase motor is equipped with:
- Vertical HOLLOSHAFT High Thrust Motors - ""P"" Base,
- Three Phase Totally Enclosed Fan Cooled (TEFC) Premium Efficient,
- SINEWAVE OPTIMIZED
- Class F Insulation, Class B Rise at Full Load
- 1.15 Service Factor
- Maximum 40C Ambient, 3,300 Feet Altitude
- 30 HP & Below Can Be Rerated for 208/415 Volt, 50 Hertz Operation at 1.0 Service Factor
- Premium Efficient Design
- Special Balance
- 115 Volt Space Heater
- Corrosion Resistant Mill & Chemical Duty Paint
- NRR = Non-Reverse Ratchet, SRC = Self-Release Coupling
- Refer to Page viii for Guidelines & Compatibility with VFDs
Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.
