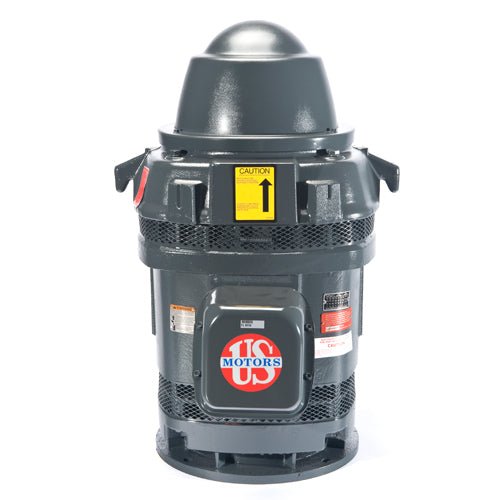

HO25V2BLG US Motors 25HP 1800RPM 284TPH WPI 230/460V 3 Phase Model FG25
HO25V2BLG US Motors 25HP 1800RPM 284TPH WPI 230/460V 3 Phase Model FG25
In stock
Regular price
$5,022.99
Regular price
$7,497.00
Sale
Sale price
$5,022.99
Couldn't load pickup availability
Product details
- SKU HO25V2BLG
- GTIN 786382108663
- Brand US Motors
- Phase 3
- RPM 1201-1800
- HP / KW 25
- Application Vertical Pumps
- Frame 284 & 286
- Enclosure WPI
- Voltage 230/460V
Model FG25
Buy US Motors HO25V2BLG by Nidec (Emerson) for a reliable AC electrical motor that lasts.
Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.
- For use on turbine, mix flow and propeller pumps.
This 3 phase motor is equipped with:
- Vertical HOLLOSHAFT High Thrust Motors - ""P"" Base, Three Phase
- Weather Protected Type I (WPI) Premium Efficient & Inverter Duty
- Class F Insulation, Class B Rise at Full Load (Sine Wave Power)
- 1.15 Service Factor (Sine Wave Power)
- Maximum 40C Ambient, 3,300 Feet Altitude
- 230/460 Volt Motors Suitable for 230 Volt Part Winding Start
- 30 HP & Below Can Be Rerated for 208/415 Volt, 50 Hertz Operation at 1.0 Service Factor (230/460 Volt Ratings Only)
- Premium Efficient Design
- Special Balance
- 115 Volt Space Heater (through 250 HP)
- Normally Closed Thermostats (1 per Phase)
- Corrosion Resistant Mill & Chemical Duty Paint
- Inverter Duty per NEMA MG-1 Part 31 at 1.0 Service Factor
- Shaft Grounding Ring
- NRR = Non-Reverse Ratchet, SRC = Self-Release Coupling
- A member of the ACCU-SERIES family of variable speed products
- Equipped with Winding Thermostat
- Inverter Duty with Inverter Grade Insulation
- Includes internal shaft grounding ring
Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.
