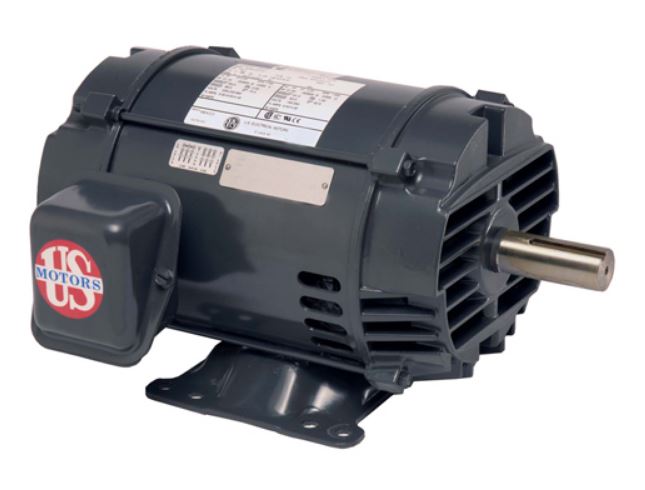

FF40E2XS US Motors 40HP 1800RPM 324TS ODP 200/400V 3 Phase Model DC32

In stock
SKU: FF40E2XS
Regular price $3,289.70
Regular price $4,910.00 Sale Sale price $3,289.70

Product details

  • SKU FF40E2XS
  • GTIN 786382096915
  • Brand US Motors
  • Phase 3
  • RPM 1201-1800
  • HP / KW 40
  • Application Pump Motors
  • Frame 324/6TS/TSC
  • Enclosure OPEN
  • Voltage 200/400V

Model: DC32

Buy US Motors FF40E2XS by Nidec (Emerson) for a reliable AC electrical motor.

Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.

  • For fire pump applications per NFPA®† 20 where contaminants are minimal.

This three phase motor features:

  • Class F Insulation, Class B Rise At Service Factor
  • Rolled Steel Frame 250-320, Cast Iron Frame 360-440
  • Aluminum End Shields 250, Cast Iron End Shields 280-440
  • Premasked Mylar Nameplate 250-320, Stainless Steel 360-440 Frame
  • 40°C Ambient, NEMA®† Design B Performance On 60 Hertz Sine Wave Power
  • Regreasable Bearings 180 Frame & Larger
  • Double Shielded Bearings 250-400, Open On 440 Frame
  • Lifting Provisions 210 Frame & Larger
  • Suitable For Wye-Delta Start 250 Frame & Large
  • Dual Voltage Ratings Suitable For Part Winding Start (PWS) On Low Voltage
  • 230/460 & 575 Volt Ratings Comply With NRCan Standards
  • 230/460V Ratings Dual Plated For 190/380V 50 Hertz, Next Lower Horsepower
  • Oversized Connection Diagram, "CE" Mark On Nameplate



 Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.
