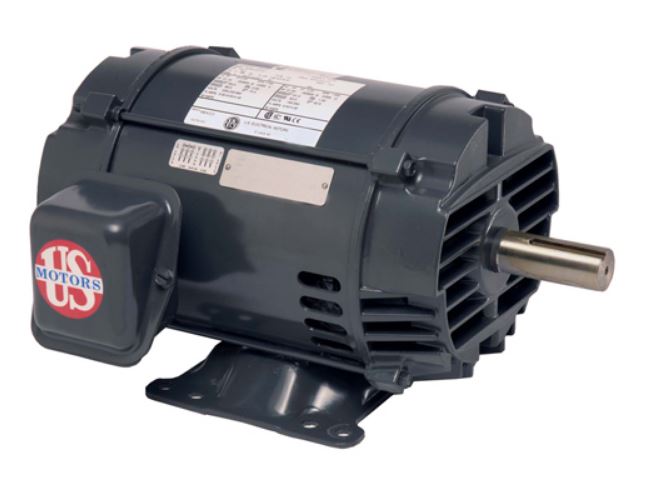

* Image is for reference only

FF20E2A US Motors 20HP 1800RPM 256T ODP 208-230/460V 3 Phase Model HE94

SKU: FF20E2A
$1,496.91
Sale $1,496.91
Description

Model: HE94

Buy US Motors FF20E2A by Nidec (Emerson) for a reliable AC electrical motor.

Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.

  • For fire pump applications per NFPA®† 20 where contaminants are minimal.

This three phase motor features:

  • Class F Insulation, Class B Rise At Service Factor
  • Rolled Steel Frame 250-320, Cast Iron Frame 360-440
  • Aluminum End Shields 250, Cast Iron End Shields 280-440
  • Premasked Mylar Nameplate 250-320, Stainless Steel 360-440 Frame
  • 40°C Ambient, NEMA®† Design B Performance On 60 Hertz Sine Wave Power
  • Regreasable Bearings 180 Frame & Larger
  • Double Shielded Bearings 250-400, Open On 440 Frame
  • Lifting Provisions 210 Frame & Larger
  • Suitable For Wye-Delta Start 250 Frame & Large
  • Dual Voltage Ratings Suitable For Part Winding Start (PWS) On Low Voltage
  • 230/460 & 575 Volt Ratings Comply With NRCan Standards
  • 230/460V Ratings Dual Plated For 190/380V 50 Hertz, Next Lower Horsepower
  • Oversized Connection Diagram, "CE" Mark On Nameplate



 Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.

SPECS:
Model_Number HE94 PRODUCT NAME 20 HP - ODP - 1770 PHASETYPE 3_PHASE MOTOR ENCLOSURE ODP HORSEPOWER 20 KILOWATTS 14.9 POLES 4 NUMBER SPEEDS 1 RPM 1770 RPM 2 1770 RPM 3 1760 RPM 4 1470 RPM 5 1470 HERTZ 60 HERTZ 2 50 VOLTS PRIMARY 208-230/460 VOLTS 460 VOLTS 2 230 VOLTS 3 208 VOLTS 4 380 VOLTS 5 190 FRME 256 SHAFT CODE T MOUNTING HORZ-FOOTED ASSEMBLY POSITION F1 MOTOR TYPE FD OPPOSITE END BEARING 6309-2Z-J/C3 SHAFT END BEARING 6309-2Z-J/C3 AMBIENT 40 SERVICE FACTOR 1.15 STARTCAPMFD N\A SHIPPING WEIGHT 160 BREAKDOWN TORQUE 220 BREAKDOWN TORQUE UOM PERCENT OF FLT LOCKED ROTOR TORQUE 220 LOCKED ROTOR TORQUE UOM PERCENT OF FLT INSULATION CLASS F KVA CODE LETTER F LOCKED ROTOR AMPS 144.8 NEMA NOMINAL EFFICIENCY 91 FULL LOAD AMPS PRIMARY 54-50/24.9 SERVICE FACTOR AMPS PRIMARY 0-57/28.6
