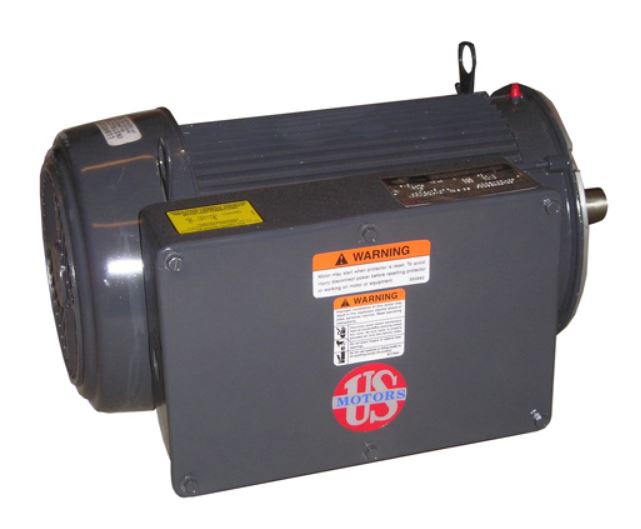

FDU3CM2K18C US Motors 3HP 1800RPM 184TC TEFC 230V 1 Phase Model AT08
FDU3CM2K18C US Motors 3HP 1800RPM 184TC TEFC 230V 1 Phase Model AT08
In stock
Regular price
$695.46
Regular price
$1,038.00
Sale
Sale price
$695.46
Couldn't load pickup availability
Product details
- SKU FDU3CM2K18C
- GTIN 786382026059
- Brand US Motors
- Phase 1
- RPM 1201-1800
- HP / KW 3
- Application Farm/Agriculture
- Frame 182/4TC
- Enclosure TOTALLY ENCLOSED
- Voltage 208-230V
- Flange C-Face Footed
Model AT08
Buy US Motors FDU3CM2K18C by Nidec (Emerson) for a reliable AC electrical motor.
Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.
- For powering agitators, augers, compressors, conveyors, feeders and hay hoists. High torque motors are used on barn cleaners, manure pumps and silo unloaders.
This single phase motor is equipped with:
- Class F Insulation
- 40°C Ambient, Continuous Duty
- Typical Starting Torque 300% Of Full Load
- F1 Assembly Position
- Extruded Aluminum Frame (180-210 Frame)
- Manual Reset Thermal Overload Protector
- Plastic Fan & Fan Cover
- Double Shielded Bearings w/Low-Temp Grease (Regreasable Shaft End)
- Removable Condensation Drains For Vertical Mounting
- Fully Gasketed Steel Conduit Box
- Die Cast Aluminum Brackets With Steel Bearing Inserts
Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.
