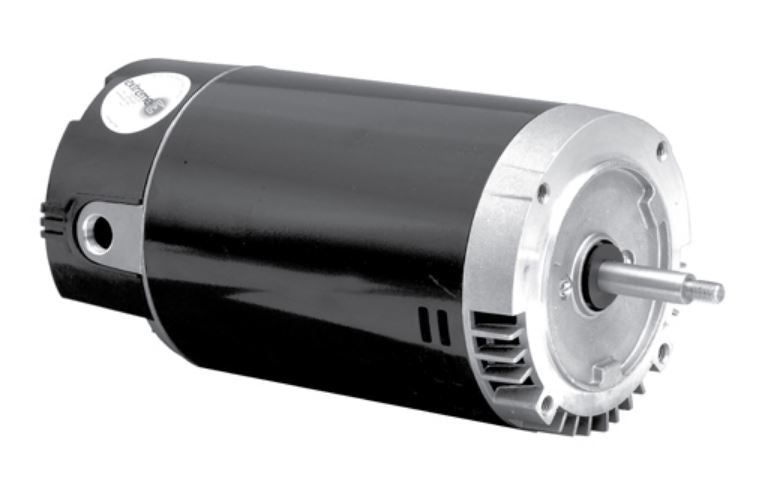

* Image is for reference only

EUSN1252 US Motors 2.5HP 3450RPM 56J ODP 1 Phase Model K063FHD5049013J

SKU: EUSN1252
$451.68
Sale $451.68
Description

Model: K063FHD5049013J

Buy US Motors EUSN1252 by Nidec (Emerson) for a reliable AC electrical motor.

Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.

HAYWARD NorthStar Replacements Single Phase features:

  • Two Compartment
  • Shaft Threaded
  • Sealed Ball Bearings
  • 60°C Ambient
  • 1081 Design
  • Continuous Duty
  • 300 Series Stainless Steel Shaft
  • Class B Insulated
  • Triple Bearing Protection
  • Premium Energy Efficient, Low Service Factor, Up/Max Rated



 Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.

SPECS:
  • Motor Phase 1 ph
  • Motor Horsepower 2-1/2 hp
  • Synchronous Rpm 3600 rpm
  • Country of Origin MEX
  • Motor Supply Voltage 208-230 V
  • Frame Size 56J
  • Enclosure Type ODP (Open Drip-Proof)
  • Frequency Rating 60 Hz
  • Base RPM 3450 rpm
  • Duty Condition Type Continuous Duty
  • Mounting Type C-Face Flange
  • Thermal Protection Automatic Reset
  • Motor Poles 2
  • Description Pool owners will experience more fun and less worry with our U.S. Motors® brand pool and spa motors. Our hard-working pool and spa motors help keep chemicals balanced, water clean and filter efficiency maximized. Whether you're looking for a new pool and spa motor or a replacement pool pump motor, you can depend on our products for energy efficiency and quality. Our motors work with a variety of brands so we have a solution for you. View our pool and spa pump motor replacement guide.
  • Description Keyword 2-1/2 hp
  • Overall Length C Dimension 14.3 in
  • Service Factor 1.10
  • Frame Material Steel
  • Insulation Class B
  • Weight 35 lbs
  • Harmonization Code 8501.40.6040
  • Manufacturer Upc Number 786382077983
  • UPC_NO 786382077983
  • Manufacturer Product Page Click here
  • Model K063FHD5049013J
  • Motor Category Pool/Spa Motor
  • Product Types AC Motors
  • Opposite Drive End Bearing 6203
  • Product Type General Purpose Motors
