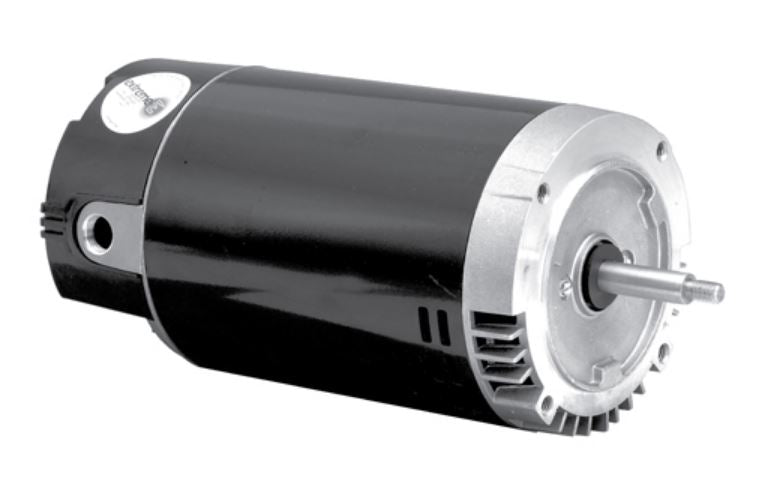

EUSN1102 US Motors 1HP 3450RPM 56J ODP 1 Phase Model K063EBB5231013J

SKU: EUSN1102
Regular price $303.66
Regular price Sale Sale price $303.66
Description

Model: K063EBB5231013J

Buy US Motors EUSN1102 by Nidec (Emerson) for a reliable AC electrical motor.

Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.

HAYWARD NorthStar Replacements Single Phase features:

  • Two Compartment
  • Shaft Threaded
  • Sealed Ball Bearings
  • 60°C Ambient
  • 1081 Design
  • Continuous Duty
  • 300 Series Stainless Steel Shaft
  • Class B Insulated
  • Triple Bearing Protection
  • Premium Energy Efficient, Low Service Factor, Up/Max Rated



 Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.

SPECS:
  • Motor Phase 1 ph
  • Motor Horsepower 1 hp
  • Synchronous Rpm 3600 rpm
  • Country of Origin MEX
  • Motor Supply Voltage 115/208-230 V
  • Frame Size 56J
  • Enclosure Type ODP (Open Drip-Proof)
  • Frequency Rating 60 Hz
  • Base RPM 3450 rpm
  • Duty Condition Type Continuous Duty
  • Mounting Type C-Face Flange
  • Thermal Protection Automatic Reset
  • Motor Poles 2
  • Description Keyword 1 hp
  • Service Factor 1.40
  • Frame Material Steel
  • Insulation Class B
  • Standards Met EE, NEMA Premium
  • Weight 25 lbs
  • Harmonization Code 8501.40.3040
  • Manufacturer Product Page Click here
  • Model K063EBB5231013J
  • Motor Category Pool/Spa Motor
  • Product Types AC Motors
  • Torque 18.3 ft-lbs
  • Opposite Drive End Bearing 6203
  • Product Type General Purpose Motors
