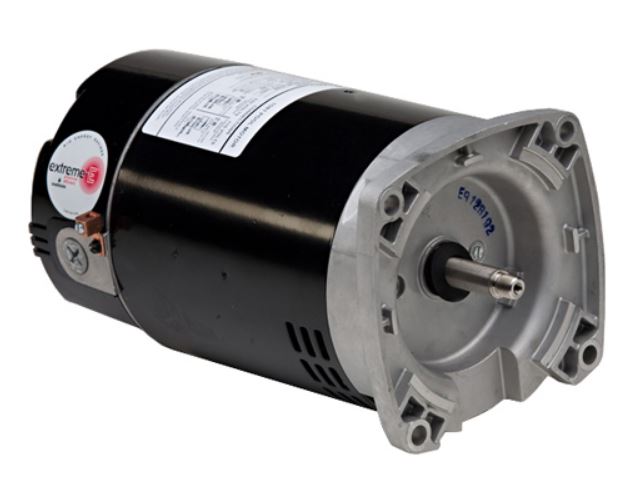

ET3230 US Motors 3HP 3450RPM 56Y ODP 1 Phase Model T063DNC2010013J
SKU:
ET3230
Regular price
$594.58
Regular price
Sale
Sale price
$594.58
- Description
- SPECS:
Description
Model: T063DNC2010013J
Buy US Motors ET3230 by Nidec (Emerson) for a reliable AC electrical motor.
Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.
HAYWARD TRISTAR Replacements Single Phase features:
- Two Compartment
- Shaft Threaded
- Sealed Ball Bearings
- Thermally Protected
- 60°C Ambient
- 1081 Design
- Continuous Duty
- 300 Series Stainless Steel Shaft
- Class B Insulated
- Triple Bearing Protection
- Premium Energy Efficient, Full Service Factor, Full Rated (Switch Design)
Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.
SPECS:
Dimensions
| Shaft Dia. | 1/2 in |
| Manufacturers Warranty Length | 24 mo |
| Length Less Shaft | 14 1/2 in |
| Bolt Circle Dia. | 7 1/8 in |
Details
| Item | Pump Motor |
| Motor Design | Capacitor-Start |
| Motor Enclosure Design | Open Dripproof |
| HP | 3 |
| Nameplate RPM | 3,450 |
| Frame | 56Y |
| Motor Shaft Rotation | CCW |
| Voltage | 208-230V AC |
| Phase | Single |
| Motor Bearings | Ball |
| Motor Thermal Protection | Auto |
| Motor Service Factor | 1.2 |
| Ins. Class | B |
| Full Load Amps | 16.0-14.8 |
| Standards | CE, CSA Certified, ISO9001:2015 Certified, UL Listed |
| Shaft Material | Stainless Steel |
| Hz | 60 Hz |
| Usable @ 208V | Yes |
| Duty Cycle | Continuous |
| Max. Ambient Temp. | 60 Degrees C |
| No. of Speeds | 1 |
| Weight | 43 lb |
| Motor Shaft Design | Threaded |
| Max. SF Amps | 16.0-14.8 |
