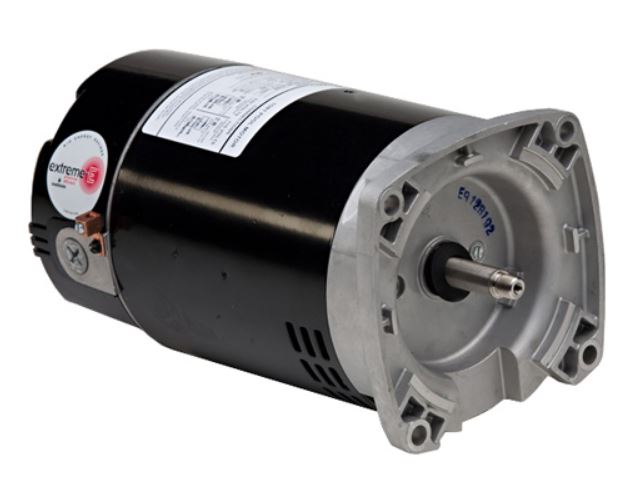

ET3210 US Motors 1HP 3450RPM 56Y ODP 1 Phase Model T063DMZ2007013J
SKU:
ET3210
Regular price
$323.23
Regular price
Sale
Sale price
$323.23
- Description
- SPECS:
Description
Model: T063DMZ2007013J
Buy US Motors ET3210 by Nidec (Emerson) for a reliable AC electrical motor.
Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.
HAYWARD TRISTAR Replacements Single Phase features:
- Two Compartment
- Shaft Threaded
- Sealed Ball Bearings
- Thermally Protected
- 60°C Ambient
- 1081 Design
- Continuous Duty
- 300 Series Stainless Steel Shaft
- Class B Insulated
- Triple Bearing Protection
- Premium Energy Efficient, Full Service Factor, Full Rated (Switch Design)
Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.
SPECS:
Dimensions
| Shaft Dia. | 5/8 in |
| Manufacturers Warranty Length | 24 mo |
| Bolt Circle Dia. | 7 1/8 in |
| Length Less Shaft | 13 1/4 in |
Details
| Item | Motor |
| Motor Design | Capacitor-Start |
| Motor Enclosure Design | Open Dripproof |
| HP | 1 |
| Nameplate RPM | 3,450 |
| Frame | 56Y |
| Motor Shaft Rotation | CCW |
| Voltage | 115/208-230V AC |
| Phase | Single |
| Motor Bearings | Ball |
| Motor Thermal Protection | Auto |
| Motor Service Factor | 1.85 |
| Ins. Class | B |
| Shaft Material | Stainless Steel |
| Standards | CE, CSA Certified, ISO9001:2015 Certified, UL Listed |
| Full Load Amps | 8.5-7.4/14.8 |
| Hz | 60 Hz |
| Duty Cycle | Continuous |
| Max. SF Amps | 8.5-7.4/14.8 |
| Usable @ 208V | Yes |
| Motor Shaft Design | Threaded |
| Weight | 30 lb |
| No. of Speeds | 1 |
| Max. Ambient Temp. | 60 Degrees C |
