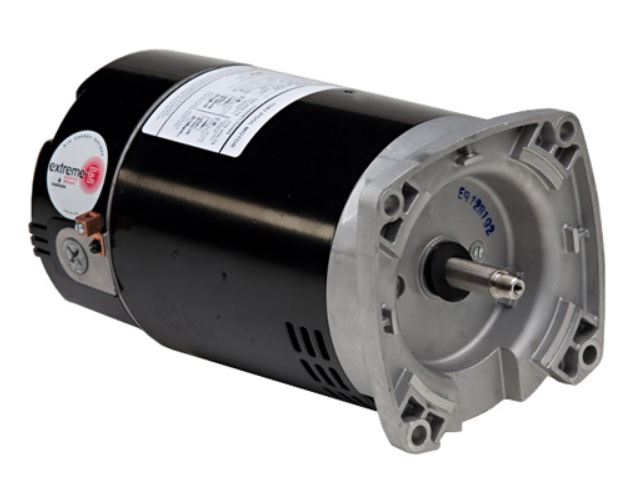

ET3207 US Motors 3/4HP 3450RPM 56 1 Phase Model T063DMY2006013J
SKU:
ET3207
Regular price
$285.80
Regular price
Sale
Sale price
$285.80
- Description
- SPECS:
Description
Model: T063DMY2006013J
Buy US Motors ET3207 by Nidec (Emerson) for a reliable AC electrical motor.
Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.
HAYWARD TRISTAR Replacements Single Phase features:
- Two Compartment
- Shaft Threaded
- Sealed Ball Bearings
- Thermally Protected
- 60°C Ambient
- 1081 Design
- Continuous Duty
- 300 Series Stainless Steel Shaft
- Class B Insulated
- Triple Bearing Protection
- Premium Energy Efficient, Full Service Factor, Full Rated (Switch Design)
Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.
SPECS:
Dimensions
| Shaft Dia. | 5/8 in |
| Length Less Shaft | 12 3/4 in |
| Bolt Circle Dia. | 7 1/8 in |
| Manufacturers Warranty Length | 24 mo |
Details
| Item | Pool Pump Motor |
| Motor Design | Capacitor-Start |
| Motor Enclosure Design | Open Dripproof |
| HP | 3/4 |
| Nameplate RPM | 3,450 |
| Frame | 56Y |
| Motor Shaft Rotation | CCW |
| Voltage | 115/208-230V AC |
| Motor Application | Pump |
| Phase | Single |
| Motor Bearings | Ball |
| Motor Thermal Protection | Auto |
| Motor Service Factor | 1.85 |
| Ins. Class | B |
| Hz | 60 Hz |
| Full Load Amps | 7.0-6.2/12.4 |
| Standards | CE, CSA Certified, ISO9001:2015 Certified, UL Listed |
| Shaft Material | Stainless Steel |
| No. of Speeds | 1 |
| Max. SF Amps | 7.0-6.2/12.4 |
| Usable @ 208V | Yes |
| Weight | 26 lb |
| Max. Ambient Temp. | 60 Degrees C |
| Duty Cycle | Continuous |
| Motor Shaft Design | Threaded |
