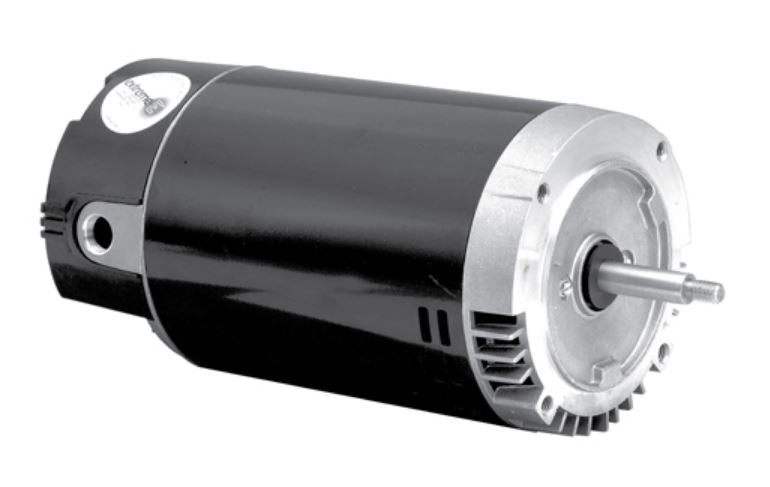

ESN1302 US Motors 3HP 3450RPM 56J ODP 1 Phase Model K063FGZ5045013J
SKU:
ESN1302
Regular price
$677.08
Regular price
Sale
Sale price
$677.08
- Description
- SPECS:
Description
Model: K063FGZ5045013J
Buy US Motors ESN1302 by Nidec (Emerson) for a reliable AC electrical motor.
Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.
HAYWARD NorthStar Replacements Single Phase features:
- Two Compartment
- Shaft Threaded
- Sealed Ball Bearings
- 60°C Ambient
- 1081 Design
- Continuous Duty
- 300 Series Stainless Steel Shaft
- Class B Insulated
- Triple Bearing Protection
- Premium Energy Efficient, Full Service Factor, Full Rated
Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.
SPECS:
Dimensions
| Shaft Dia. | 5/8 in |
| Manufacturers Warranty Length | 24 mo |
Details
| Item | Pump Motor |
| HP | 3 |
| Nameplate RPM | 3,450 |
| Voltage | 208-230V AC |
| Motor Mounting Type | Face |
| Frame | 56J |
| Motor Bearings | Ball |
| Motor Service Factor | 1.6 |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Open Dripproof |
| Phase | Single |
| No. of Speeds | 1 |
| Motor Application | Pool Pump |
| Motor Shaft Rotation | CCW |
| Hz | 60 Hz |
| Ins. Class | F |
| Max. Ambient Temp. | 50 Degrees C |
| Motor Shaft Design | Threaded |
| Standards | CE, CSA Certified, ISO9001:2015 Certified, UL Listed |
| Motor Thermal Protection | Auto |
| Max. SF Amps | 20.6-19.0 |
| Weight | 35 lb |
| Service Factor @ 50Hz | 1.6 |
| Bearing Protection | Seals |
| Usable @ 208V | Yes |
| Duty Cycle | Continuous |
