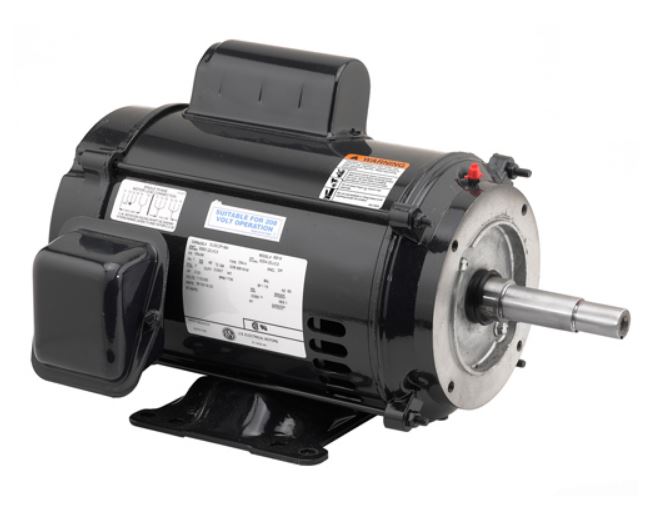

* Image is for reference only

EJM502B US Motors 5HP 3600RPM 184JM ODP 208-230V 1 Phase Model T063CSF1492014J

SKU: EJM502B
$602.28
Sale $602.28
Description

Model: T063CSF1492014J

Buy US Motors EJM502B by Nidec (Emerson) for a reliable AC electrical motor.

Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.

  • For the specific requirements of centrifugal pumps where the pump impeller is mounted directly on the motor shaft.
    Used where dirt and moisture are minimal.

This single phase motor features:

  • Class F Insulation
  • Rolled Steel Frame
  • Oversized Ball Bearings w/Locked Shaft End Construction
  • Reversible Rotation
  • F1 Assembly Position
  • Shaft Slinger On Pulley End
  • Lifting Provisions
  • “JM” Shaft For Mechanical Seal, “JP” Shaft for Packing Seal



 Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.

SPECS:
Shaft Length 4 1/8 in Length Less Shaft 11 7/8 in
Shaft Dia. 1 in Overall Length 16 5/16 in
Body Dia. 6.5 in Height 9 1/2 in
Bolt Circle Dia. 5 7/8 in

Details

Motor Design Capacitor-Start Item Motor
Phase Single HP 5
Frame 184JM Voltage 208-230V AC
Motor Thermal Protection None Motor Enclosure Design Open Dripproof
Motor Mounting Type Face/Base Full Load Amps 24.0-23.7
Motor Frame Material Rolled Steel Motor Service Factor 1.15
Nameplate RPM 3,450 Motor Shaft Rotation CCW
Standards CE, CSA Certified, ISO9001:2015 Certified, UL Listed Max. Ambient Temp. 40 Degrees C
Hz 60 Hz No. of Speeds 1
Motor Sub Application Special Application Close Coupled Pump Motor Shaft Design 1 in
Motor Bearings Ball Ins. Class F
Weight 56 lb Bearing Protection Locked Shaft
Conduit Box Position F1 Usable @ 208V Yes
Max. SF Amps 26.2-24.8 Service Factor @ 50Hz 1.15
