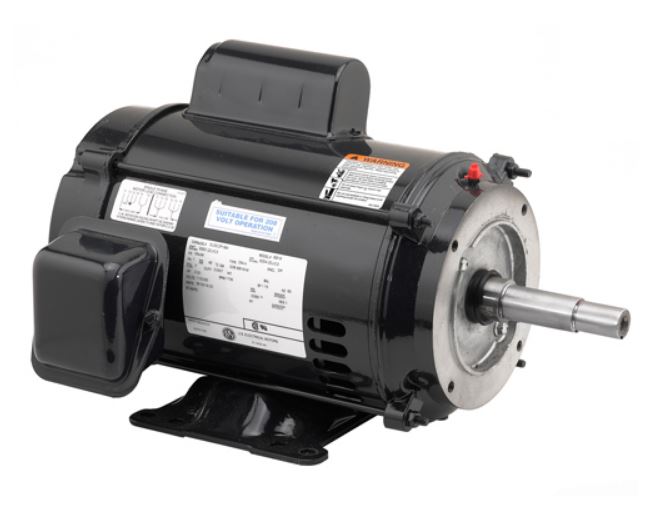

* Image is for reference only

EJM302B US Motors 3HP 3600RPM 182JM ODP 208-230V 1 Phase Model T063CRD1468014J

SKU: EJM302B
$570.03
Sale $570.03
Description

Model: T063CRD1468014J

Buy US Motors EJM302B by Nidec (Emerson) for a reliable AC electrical motor.

Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.

  • For the specific requirements of centrifugal pumps where the pump impeller is mounted directly on the motor shaft.
    Used where dirt and moisture are minimal.

This single phase motor features:

  • Class F Insulation
  • Rolled Steel Frame
  • Oversized Ball Bearings w/Locked Shaft End Construction
  • Reversible Rotation
  • F1 Assembly Position
  • Shaft Slinger On Pulley End
  • Lifting Provisions
  • “JM” Shaft For Mechanical Seal, “JP” Shaft for Packing Seal



 Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.

SPECS:
MFR # EJM302B Zoro # G6010655
UPC # 786382074937 Country of Origin Mexico

Dimensions

Overall Length 15 5/16 in Shaft Dia. 1 in
Length Less Shaft 10 7/16 in Shaft Length 3 5/8 in
Bolt Circle Dia. 5 7/8 in Body Dia. 6.5 in
Height 9 1/2 in

Details

Motor Design Capacitor-Start Item Motor
Phase Single HP 3
Frame 182JM Voltage 208-230V AC
Motor Thermal Protection None Motor Enclosure Design Open Dripproof
Motor Mounting Type Face/Base Full Load Amps 14.0-13.2
Motor Service Factor 1.15 Motor Bearings Ball
Motor Sub Application Special Application Close Coupled Pump Motor Frame Material Rolled Steel
Motor Shaft Rotation CCW Nameplate RPM 3,450
Ins. Class B Max. Ambient Temp. 40 Degrees C
No. of Speeds 1 Hz 60 Hz
Motor Shaft Design 1 in Standards CE, CSA Certified, ISO9001:2015 Certified, UL Listed
Conduit Box Position F1 Usable @ 208V Yes
Bearing Protection Locked Shaft Weight 32 lb
Max. SF Amps 15.9-14.6 Service Factor @ 50Hz 1.15
