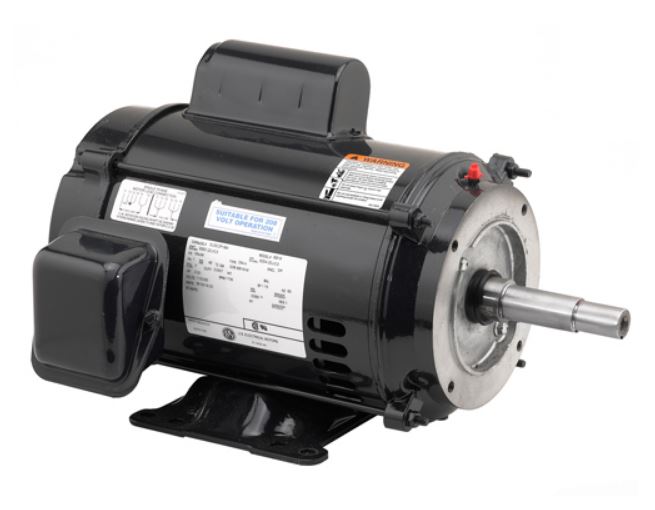

* Image is for reference only

EJM202B US Motors 2HP 3600RPM 145JM ODP 115/208-2230V 1 Phase Model T063CRY1484014J

SKU: EJM202B
$528.90
Sale $528.90
Description

Model: T063CRY1484014J

Buy US Motors EJM202B by Nidec (Emerson) for a reliable AC electrical motor.

Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.

  • For the specific requirements of centrifugal pumps where the pump impeller is mounted directly on the motor shaft.
    Used where dirt and moisture are minimal.

This single phase motor features:

  • Class F Insulation
  • Rolled Steel Frame
  • Oversized Ball Bearings w/Locked Shaft End Construction
  • Reversible Rotation
  • F1 Assembly Position
  • Shaft Slinger On Pulley End
  • Lifting Provisions
  • “JM” Shaft For Mechanical Seal, “JP” Shaft for Packing Seal



 Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.

SPECS:
MFR # EJM202B Zoro # G1944524
UPC # 786382066451 Country of Origin Mexico

Dimensions

Length Less Shaft 10 7/16 in Shaft Length 4 1/8 in
Overall Length 14 9/16 in Shaft Dia. 7/8 in

Details

Item Close-Coupled Pump Motor Motor Design Capacitor-Start/Run
HP 2 RPM Range 3,001-3,600
Nameplate RPM 3,600 Voltage 115/208-230V AC
Frame 145JM Motor Mounting Type Face/Base
Motor Service Factor 1.15 Hz 60 Hz
Motor Enclosure Design Open Dripproof Motor Application Pump
Inverter Rated No Motor Frame Material Steel
Motor Shaft Rotation CW/CCW Motor Shaft Design JM Threaded
Ins. Class F Phase Single
Full Load Amps 19.6/10.7-9.8 Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Motor Bearings Ball Motor Thermal Protection None
No. of Speeds 1 Nominal Efficiency 83.7 %
Max. Ambient Temp. 40 Degrees C CC Number CC030A
Motor Sub Application Close-Coupled Pump Duty Continuous
Standards CSA (156060), UL (E22922) Finish Unfinished
Duty Cycle Continuous Weight 35 lb
Usable @ 208V Yes Conduit Box Position F1
Conduit Box Location Exterior Usable @ 200V No
