Home » EJM154B US Motors 1.5HP 1800RPM 145JM ODP 230V 1 Phase Model T063CRT1482014J
EJM154B US Motor 1.5hp - Pump Motors - Square One Electric

* Image is for reference only

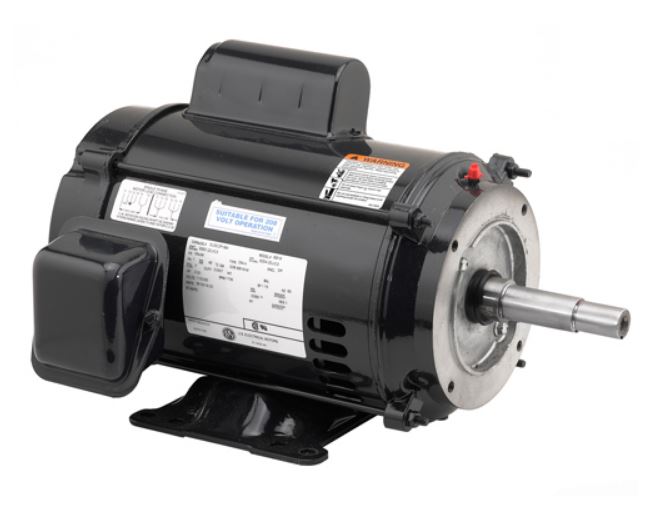

EJM154B US Motors 1.5HP 1800RPM 145JM ODP 230V 1 Phase Model T063CRT1482014J

SKU: EJM154B
$474.89
Sale $474.89
Description

Model: T063CRT1482014J

Buy US Motors EJM154B by Nidec (Emerson) for a reliable AC electrical motor.

Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.

  • For the specific requirements of centrifugal pumps where the pump impeller is mounted directly on the motor shaft.
    Used where dirt and moisture are minimal.

This single phase motor features:

  • Class F Insulation
  • Rolled Steel Frame
  • Oversized Ball Bearings w/Locked Shaft End Construction
  • Reversible Rotation
  • F1 Assembly Position
  • Shaft Slinger On Pulley End
  • Lifting Provisions
  • “JM” Shaft For Mechanical Seal, “JP” Shaft for Packing Seal



 Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.

SPECS:
MFR # EJM154B Zoro # G4404829
UPC # 786382074944 Country of Origin Mexico

Dimensions

Length Less Shaft 8 15/16 in Overall Length 13 13/16 in
Shaft Length 3 5/8 in Shaft Dia. 1 in
Body Dia. 6.5 in Height 8 1/2 in
Bolt Circle Dia. 5 7/8 in

Details

Item Motor Motor Design Capacitor-Start
HP 1 1/2 Nameplate RPM 1,750
Voltage 115/208-230V AC Frame 145JM
Motor Mounting Type Face/Base Motor Service Factor 1.15
Full Load Amps 16.0/8.3-8.0 Phase Single
Ins. Class B Max. Ambient Temp. 40 Degrees C
Motor Sub Application Special Application Close Coupled Pump Motor Shaft Rotation CCW
Motor Thermal Protection None Motor Enclosure Design Open Dripproof
Motor Bearings Ball Motor Frame Material Rolled Steel
Standards CE, CSA Certified, ISO9001:2015 Certified, UL Listed Motor Shaft Design 1 in
Hz 60 Hz Conduit Box Position F1
Usable @ 208V Yes No. of Speeds 1
Weight 32 lb Bearing Protection Locked Shaft
Max. SF Amps 17.2/9.2-8.6 Service Factor @ 50Hz 1.15
