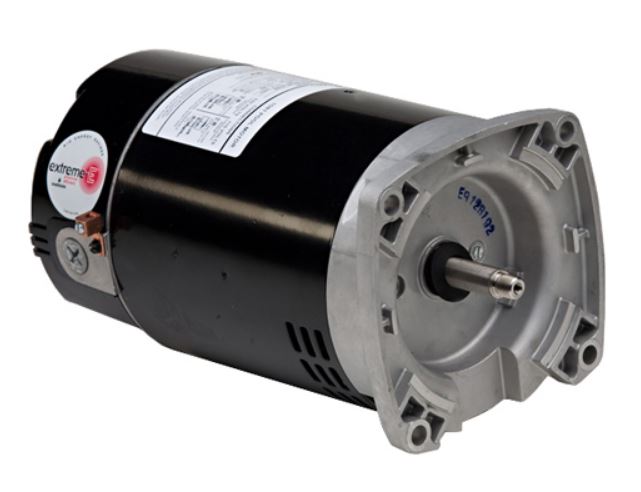

EH635 US Motors 1HP 3450RPM 56Y ODP 3 Phase Model P063GEL4517014J
SKU:
EH635
Regular price
$325.79
Regular price
Sale
Sale price
$325.79
- Description
- SPECS:
Description
Model: P063GEL4517014J
Buy US Motors EH635 by Nidec (Emerson) for a reliable AC electrical motor.
Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.
Three Phase features:
- Shaft Threaded
- Sealed Ball Bearings
- 50°C Ambient
- 1081 Design
- Continuous Duty
- 300 Series Stainless Steel Shaft
- Class B Insulated
- Triple Bearing Protection
- Rated for 50 Hertz, 1.0 Service Factor
- Square Flange, Full Service Factor, Full Rated
Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.
SPECS:
Dimensions
| Shaft Dia. | 1/2 in |
| Bolt Circle Dia. | 7 1/8 in |
| Manufacturers Warranty Length | 24 mo |
| Body Dia. | 6.5 in |
Details
| Item | Pump Motor |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Dripproof |
| HP | 1 |
| Nameplate RPM | 2,850/3,450 |
| Frame | 56Y |
| Motor Shaft Rotation | CW |
| Voltage | 208-230/460V AC |
| Motor Mounting Type | Rigid Base |
| Phase | Three |
| Motor Bearings | Ball |
| Motor Thermal Protection | None |
| Motor Service Factor | 1.65 |
| Ins. Class | B |
| Shaft Material | Stainless Steel |
| Hz | 60/50 |
| Standards | CE, CSA Certified, ISO9001:2015 Certified, UL Listed |
| Motor Shaft Design | Threaded |
| Max. SF Amps | 4.8-4.6/2.3 |
| No. of Speeds | 1 |
| RPM @ 50Hz | 2,850/3,450 |
| Usable @ 208V | Yes |
| Voltage @ 50Hz | 208-230/460V |
| Max. Ambient Temp. | 50 Degrees C |
| HP @ 50Hz | 1 |
| Weight | 26 lb |
| Bearing Protection | Seals |
| Service Factor @ 50Hz | 1.65 |
| Duty Cycle | Continuous |
