Home » EEQK750 US Motors 7.5HP 3600RPM 184JMZ ODP 3 Phase DA97
EEQK750 US Motor 7.5hp - Pump Motors - Square One Electric

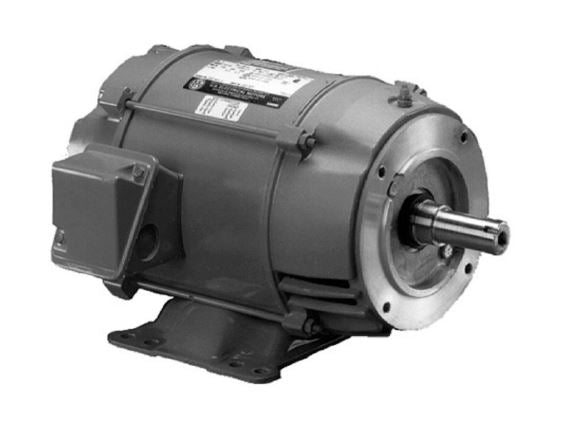

* Image is for reference only

EEQK750 US Motors 7.5HP 3600RPM 184JMZ ODP 3 Phase DA97

SKU: EEQK750
$943.31
Sale $943.31
Description

Reliable U.S. Motors EEQK750 makes owning a pool or spa more fun with less worry. These 7.5hp pump motors enhance your pool's performance by bassisting with balancing the chemistr; cleaning water; and improving energy efficiency.

PENTAIR EQ SERIES motor specifications include:

  • Model: DA97
  • Special JMZ Mounting
  • 40°C Ambient
  • Continuous Duty
  • Class F Insulated
  • Thermally protected
  • Permanently Lubricated Ball Bearings
  • Special Ground Lug
  • 300 Series Stainless Steel Shaft
  • Rigid Base
  • Premium Efficient, Full Service Factor, Full Rated
SPECS:

Dimensions

Length Less Shaft 11 7/8 in
Overall Length 16 1/8 in
Shaft Dia. 1 in
Shaft Length 4 1/4 in
Body Dia. 8.5 in
Bolt Circle Dia. 5 7/8 in
Manufacturers Warranty Length 24 mo
Height 8 1/2 in
