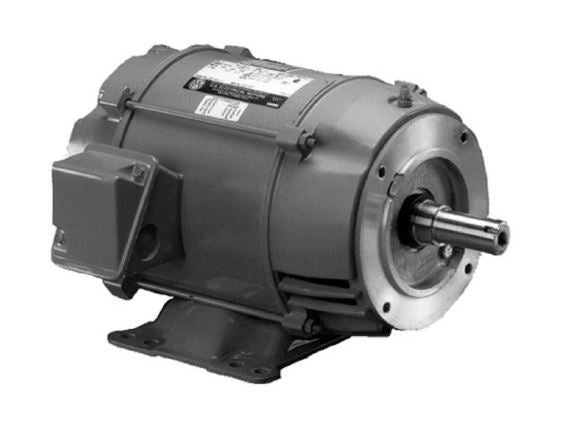

* Image is for reference only

EEQK1500 US Motors 15HP 3600RPM 215JMZ ODP 3 Phase DB01

Name: EEQK1500 US Motors 15HP 3600RPM 215JMZ ODP 3 Phase DB01
Brand: US
SKU: EEQK1500
Price: 1390.73 USD
Availability: InStock

SKU: EEQK1500

$1,390.73

Sale $1,390.73

Description
SPECS:

Description

Reliable U.S. Motors EEQK1500 makes owning a pool or spa more fun with less worry. These 15hp pump motors enhance your pool's performance by bassisting with balancing the chemistr; cleaning water; and improving energy efficiency.

PENTAIR EQ SERIES motor specifications include:

Model: DB01
Special JMZ Mounting
40°C Ambient
Continuous Duty
Class F Insulated
Thermally protected
Permanently Lubricated Ball Bearings
Special Ground Lug
300 Series Stainless Steel Shaft
Rigid Base
Premium Efficient, Full Service Factor, Full Rated

SPECS:

Dimensions

Length Less Shaft	15 in
Overall Length	19 1/4 in
Shaft Dia.	1 in
Shaft Length	4 1/4 in
Body Dia.	10 in
Bolt Circle Dia.	7 1/4 in
Manufacturers Warranty Length	24 mo

Details

Item	Pump Motor
HP	15
Nameplate RPM	3,515
Voltage	208-230/460V AC
Motor Mounting Type	Rigid Base
Full Load Amps	40.0-38.0/18.8
Frame	215JMZ
Motor Service Factor	1.15
Motor Design	3-Phase
Motor Enclosure Design	Open Dripproof
Phase	Three
No. of Speeds	1
Motor Shaft Rotation	CW/CCW
Hz	60 Hz
Ins. Class	F
Max. Ambient Temp.	40 Degrees C
Motor Mounting Position	Horizontal
Nominal Efficiency	91 %
Standards	CSA Certified, cURus
CC Number	CC030A
Shaft Material	Stainless Steel
NEMA Design	A
Inverter Rated	Yes
Usable @ 208V	Yes
Service Factor @ 50Hz	1.15
Max. SF Amps	46.0-43.0/21.3
Voltage @ 50Hz	208-230/460V
Conduit Box Position	F1
Weight	105 lb
Inverter Rating	20:1 (VT), 4:1 (CT)
Duty Cycle	Continuous
