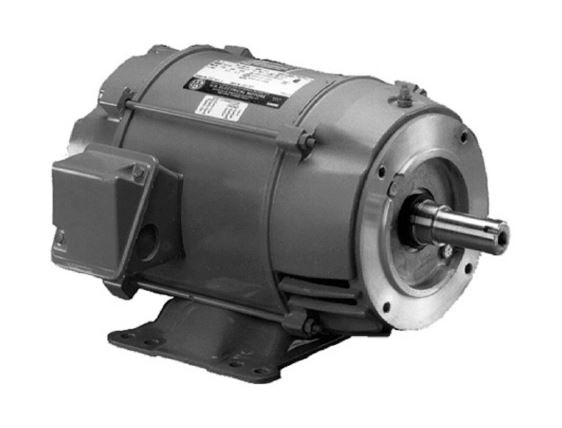

* Image is for reference only

EEQK1000 US Motors 10HP 3600RPM 213JMZ ODP 3 Phase DA99

Name: EEQK1000 US Motors 10HP 3600RPM 213JMZ ODP 3 Phase DA99
Brand: US
SKU: EEQK1000
Price: 1248.68 USD
Availability: InStock

SKU: EEQK1000

$1,248.68

Sale $1,248.68

Description
SPECS:

Description

Reliable U.S. Motors EEQK1000 makes owning a pool or spa more fun with less worry. These 10hp pump motors enhance your pool's performance by bassisting with balancing the chemistr; cleaning water; and improving energy efficiency.

PENTAIR EQ SERIES motor specifications include:

Model: DA99
Special JMZ Mounting
40°C Ambient
Continuous Duty
Class F Insulated
Thermally protected
Permanently Lubricated Ball Bearings
Special Ground Lug
300 Series Stainless Steel Shaft
Rigid Base
Premium Efficient, Full Service Factor, Full Rated

SPECS:

Dimensions

Length Less Shaft	13 1/2 in
Overall Length	17 3/4 in
Shaft Dia.	1 in
Shaft Length	4 1/4 in
Bolt Circle Dia.	7 1/4 in
Body Dia.	10 in
Manufacturers Warranty Length	24 mo
Height	6 3/4 in

Details

Item	Pump Motor
HP	10
Nameplate RPM	3,525
Voltage	208-230/460V AC
Motor Mounting Type	Rigid Base
Full Load Amps	27.0-26.2/13.1
Frame	213JMZ
Motor Service Factor	1.15
Motor Design	3-Phase
Motor Enclosure Design	Open Dripproof
Phase	Three
No. of Speeds	1
Motor Shaft Rotation	CW/CCW
Hz	60 Hz
Ins. Class	F
Max. Ambient Temp.	40 Degrees C
Motor Mounting Position	Horizontal
Nominal Efficiency	90.2 %
Standards	CSA Certified, cURus
CC Number	CC030A
NEMA Design	A
Inverter Rated	Yes
Shaft Material	Stainless Steel
Voltage @ 50Hz	208-230/460V
Duty Cycle	Continuous
Service Factor @ 50Hz	1.15
Max. SF Amps	31.0-29.4.0/14.7
Inverter Rating	20:1 (VT), 4:1 (CT)
Usable @ 208V	Yes
Conduit Box Position	F1
Weight	90 lb
