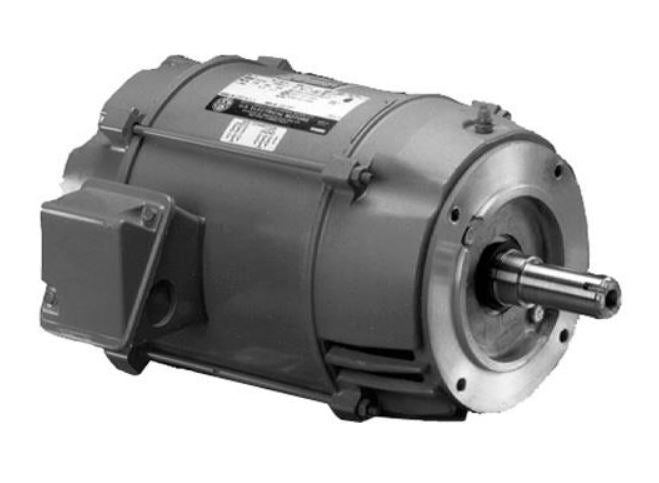

* Image is for reference only

DJ7P2DU US Motors 7.5HP 1800RPM 213JM ODP 208-230/460V 3 Phase Model FM51

SKU: DJ7P2DU
$868.73
Sale $868.73
Description

Model: FM51

Buy US Motors DJ7P2DU by Nidec (Emerson) for a reliable AC electrical motor.

Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.

  • For the specific requirements of centrifugal pumps where the pump impeller is mounted directly on the motor shaft. Used in damp, dusty or dirty environments.

This three phase motor features:

  • Class F Insulation, Class B Rise At Service Factor
  • Rolled Steel Frame
  • Aluminum End Shields 140-250, Cast Iron End Shields 280-320
  • Oversized Ball Bearings w/Locked Shaft End Construction
  • Premasked Mylar Nameplate (with "CE" Mark)
  • F1 Assembly Position
  • Regreasable Bearings 180 Frame & Up, Lifting Provisions 210 Frame & Up
  • Double Shielded Bearings
  • 40°C Ambient, NEMA®† Design B Performance On 60 Hertz
    Sine Wave Power



 Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.

SPECS:
MFR # DJ7P2DU Zoro # G0406915
UPC # 786382116514 Country of Origin Mexico

Dimensions

Shaft Dia. 7/8 in Bolt Circle Dia. 7 1/4 in

Details

Item Pool Pump Motor Motor Design 3-Phase
Motor Enclosure Design Open Dripproof HP 7 1/2
Nameplate RPM 1,765 Frame 213JM
Voltage 208-230/460V AC Hz 60/50
Standards CSA Certified, ENERGY cURus Motor Mounting Type Rigid Base
CC Number CC030A Full Load Amps 20.2-18.5/9.3
Motor Bearings Ball Motor Service Factor 1.15
Nominal Efficiency 91 % Motor Frame Material Steel
Phase Three Motor Mounting Position Horizontal
Ins. Class F Service Factor @ 50Hz 1.15
No. of Speeds 1 Regreasable Bearings Regreasable Bearings
Inverter Rating 20:1 (VT), 4:1 (CT) Full Load Amps @ 50Hz 20.2-18.5/9.3
Weight 90 lb Inverter Rated Yes
Duty Cycle Continuous Bearing Protection Double Shields
Usable @ 208V Yes NEMA Design B
HP @ 50Hz 7 1/2 Conduit Box Position F1
RPM @ 50Hz 1,765/1,450 Max. SF Amps 23.3-21.0/10.5
Voltage @ 50Hz 190V, 208-230/460V Max. Ambient Temp. 40 Degrees C
