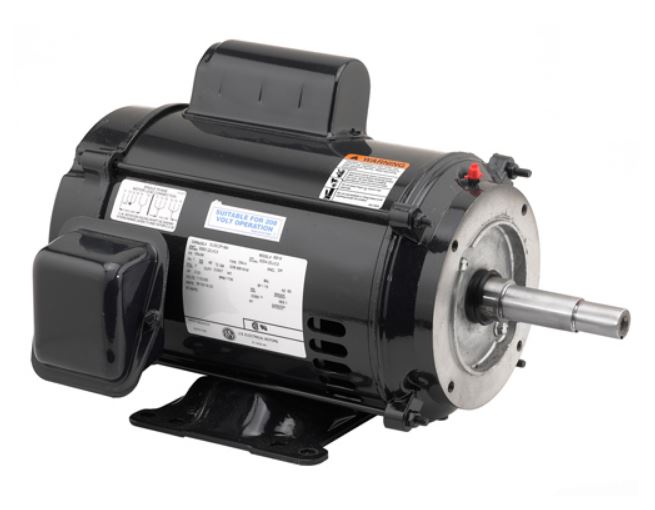

* Image is for reference only

DJ7C2K21P US Motors 7.5HP 1800RPM 215JP ODP 230V 1 Phase Model BB11

SKU: DJ7C2K21P
$1,205.85
Description

Model: BB11

Buy US Motors DJ7C2K21P by Nidec (Emerson) for a reliable AC electrical motor.

Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.

  • For the specific requirements of centrifugal pumps where the pump impeller is mounted directly on the motor shaft.
    Used where dirt and moisture are minimal.

This single phase motor features:

  • Class F Insulation
  • Rolled Steel Frame
  • Oversized Ball Bearings w/Locked Shaft End Construction
  • Reversible Rotation
  • F1 Assembly Position
  • Shaft Slinger On Pulley End
  • Lifting Provisions
  • “JM” Shaft For Mechanical Seal, “JP” Shaft for Packing Seal



 Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.

SPECS:
  • Motor Phase 1 ph
  • Motor Horsepower 7-1/2 hp
  • Synchronous Rpm 1800 rpm
  • Country of Origin MEX
  • Motor Supply Voltage 230 V
  • Frame Size 215JP
  • Enclosure Type ODP (Open Drip-Proof)
  • Frequency Rating 60 Hz
  • Base RPM 1730 rpm
  • Duty Condition Type Continuous Duty
  • Mounting Type Horizontal / Foot
  • Motor Poles 4
  • Description Our single-phase motors provide the advantages you’ve come to expect from Nidec Motor Corporation’s U.S. Motors® brand: simplicity of design, ease of maintenance, reliability and efficiency. We manufacture both off-the-shelf and built-to-order single-phase motors. Whether you are working with a new application or need to replace a failed motor, we can provide a motor solution suited to your requirements. Our U.S. Motors® brand single-phase motors are robust and designed to handle environmental and application challenges from air compressors, pumps and conveyors to farm and agriculture applications to residential and commercial HVACR uses. They’re built for performance, efficiency and longevity – three benefits you require from your motors.
  • Description Keyword 7-1/2 hp
  • Overall Length C Dimension 26 in
  • NEMA Design Class L
  • Service Factor 1.15
  • Frame Material Rolled Steel
  • Insulation Class F
  • Weight 110 lbs
  • Harmonization Code 8501.40.6040
  • Manufacturer Upc Number 786382024444
  • Manufacturer Product Page Click here
  • Model BB11
  • Motor Category Close Coupled Pump Motor
  • Max Allowable Current 35.6 A
  • Product Types AC Motors
  • Opposite Drive End Bearing 6205-2Z-J/C3
  • Product Type General Purpose Motors
