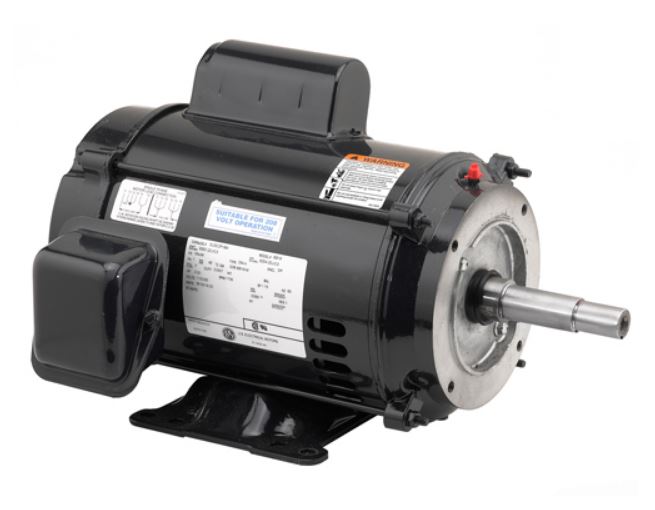

DJ7C1K21M US Motors 7.5HP 36000RPM 213JM ODP 230V 1 Phase Model BB19
SKU:
DJ7C1K21M
Regular price
$1,099.73
Regular price
Sale
Sale price
$1,099.73
- Description
- SPECS:
Description
Model: BB19
Buy US Motors DJ7C1K21M by Nidec (Emerson) for a reliable AC electrical motor.
Use in a wide range of industrial and commercial applications, including pumps, fans, blowers, machinery, and compressors. From water treatment to manufacturing to facilities management, US Motors manufactures quality products to meet your needs.
- For the specific requirements of centrifugal pumps where the pump impeller is mounted directly on the motor shaft.
Used where dirt and moisture are minimal.
This single phase motor features:
- Class F Insulation
- Rolled Steel Frame
- Oversized Ball Bearings w/Locked Shaft End Construction
- Reversible Rotation
- F1 Assembly Position
- Shaft Slinger On Pulley End
- Lifting Provisions
- “JM” Shaft For Mechanical Seal, “JP” Shaft for Packing Seal
Each motor is brand new and drop ships straight from the factory, complete with manufacturer's warranty.
SPECS:
| MFR # | DJ7C1K21M | Zoro # | G2198035 |
| UPC # | 786382024413 | Country of Origin | Mexico |
Dimensions
| Shaft Dia. | 7/8 in | ||
Details
| Item | Motor | Motor Design | Capacitor-Start/Run |
| Phase | Single | HP | 7 1/2 |
| Frame | 213JM | Voltage | 230V AC |
| Motor Enclosure Design | Open Dripproof | Motor Mounting Type | Rigid Base |
| Full Load Amps | 30.4 | Ins. Class | F |
| Standards | CSA Certified, UR | No. of Speeds | 1 |
| Motor Frame Material | Steel | Motor Service Factor | 1.15 |
| Max. Ambient Temp. | 40 Degrees C | Nameplate RPM | 3,480 |
| Motor Bearings | Ball | Hz | 60 Hz |
| Conduit Box Position | F1 | Duty Cycle | Continuous |
| NEMA Design | L | Weight | 141 lb |
